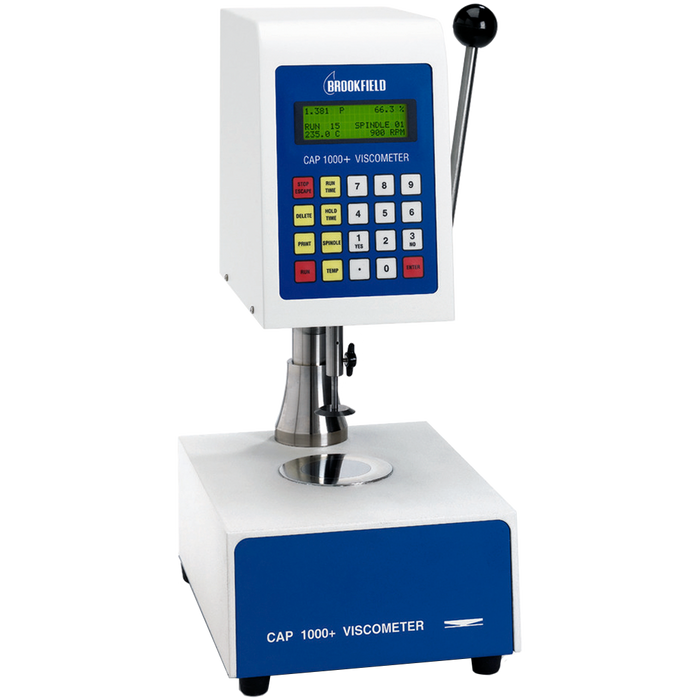

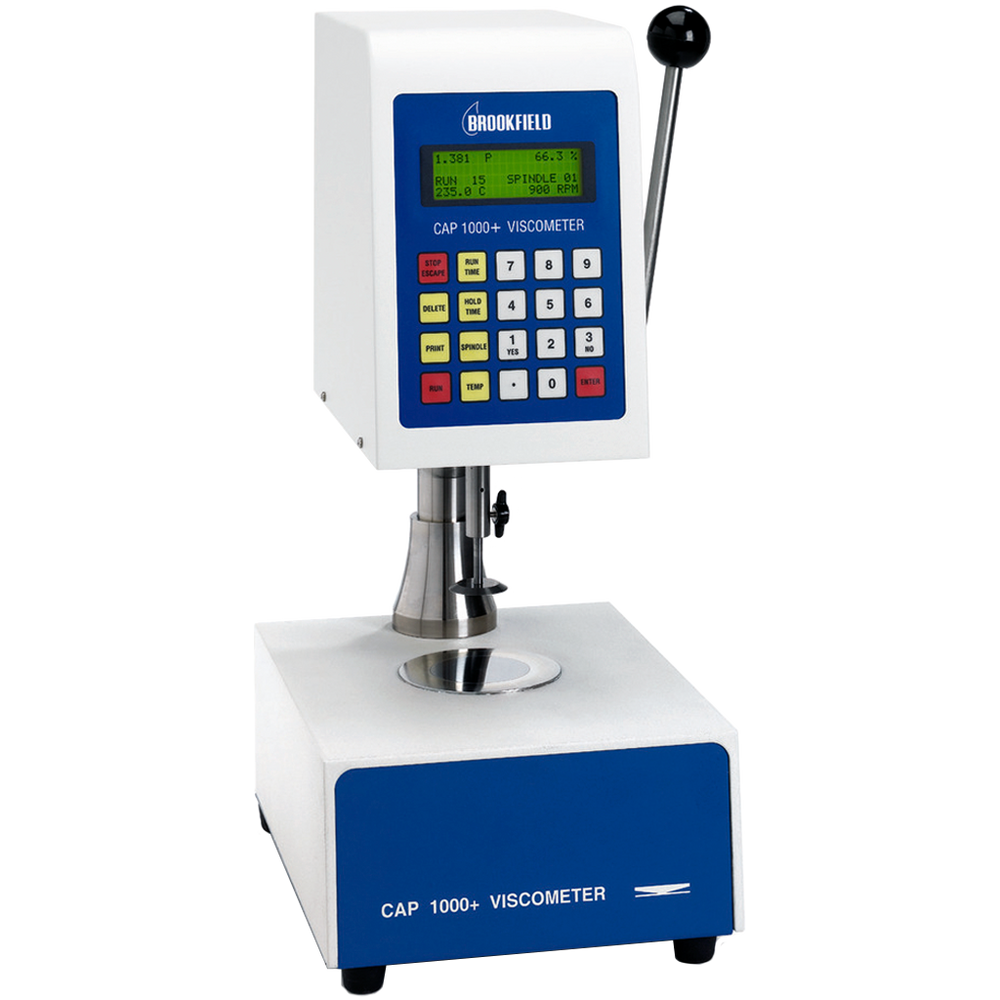

CAP 1000 + H Cone and Plate Viscometer, 230V

$8,818.00
SKU
  • DESCRIPTION
  • DATA SHEET
  • ACCESSORIES
  • The versatility of the CAP 1000+ and CAP 2000+ makes these instruments the best tool for any Quality Control or R&D laboratory, which requires quick and simple materials testing at high shear rates.

    CAP 1/23 are for low speed applications such as clear coats and automotive color bases.

    • Viscosity measurements at high shear rate.
    • LCD display with values ​​in Poises or Pascals-seconds.
    • Use 2 ml of sample. Avoid excess cleaning and material costs.
    • Simple to use, due to its automatic calibration range and cone positioning space.
    • Configuration of the reading interval at different times, to specify the result of thixotropic fluids.

    Technical specifications :

    • Temperature range: 50 - 235 °C.
    • Viscosity range: 25 - 10000 cP.
    • Speeds: 750 or 900 rpm.
    • Shear force: up to 13,300 s - 1 .
    • Accuracy: ±2% of full scale.
    • Time Readings: Digital timer with continuous run override; range from 15 to 99 seconds.
    • Printing interface: Centronic Parallel.
    • Temperature control: 0.1°C increments.

    General

    • Power: 230 V, 50 Hz.
    • Dimensions L x W x H: 48 x 46 x 66 cm.
    • Dimensions L x W x H: 19 x 18 x 26 in.
