O DIN S-1 open DIN adapter set
$1,602.00
SKU
- DESCRIPTION
- DATA SHEET
- ACCESSORIES
-

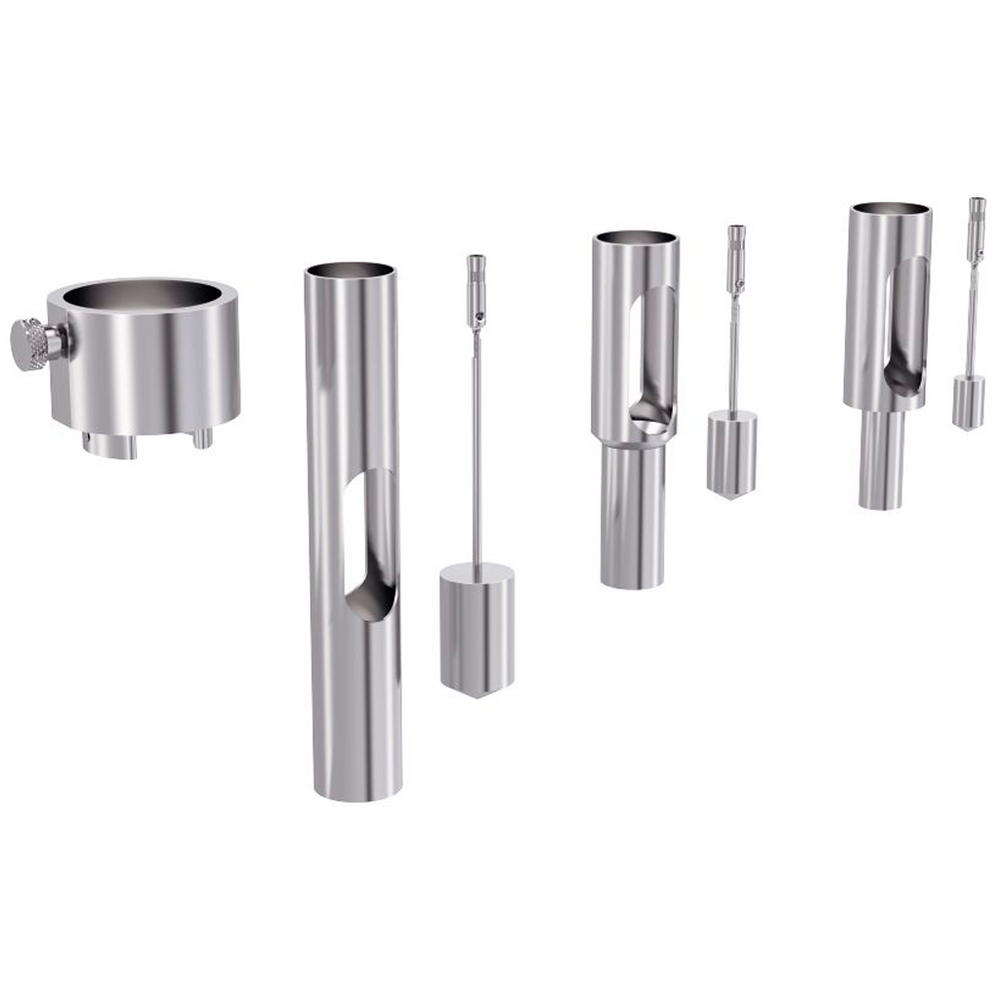

The open DIN screw set (O-DINS-1) measures viscosities according to DIN 53019 and can be used with user-specific containers. The kit includes a single-wall open jacket for rapid immersion into sample liquid, as well as a coaxial cylinder system for sample analysis at a specified speed and shear stress. The maximum measurable viscosity is 50,000 mPas.
Technical data Geometry Cylinder Connection M2.5 left thread Flow jacket Yeah Holding stirrup Yeah
Sample container specified container Max. temperature operation 100°C Viscosity accuracy 2 % Viscosity repeatability 0.2% Min. measuring range ROTAVISC lo-vi 6 mPa.s Max measuring range ROTAVISC lo-vi 50000 mPa.s Min. measuring range ROTAVISC me-vi 61 mPa.s Max measuring range ROTAVISC me-vi 50000 mPa.s Min. measuring range ROTAVISC hi-vi I 122 mPa.s Max measuring range ROTAVISC hi-vi I 50000 mPa.s Min. measuring range ROTAVISC hi-vi II 488 mPa.s Max measuring range ROTAVISC hi-vi II 50000 mPa.s Material in contact with product Stainless steel 1.4404 Dimensions (W x H x D) 390 x 102 x 310mm Weight 1,919kg -
