Adapter, low viscosity with water jacket
$1,359.00
SKU
The low viscosity adapter is used to make accurate and reproducible measurements with low viscosity materials.
This adapter is most commonly used with L series equipment, but can be adapted to R series for some applications.

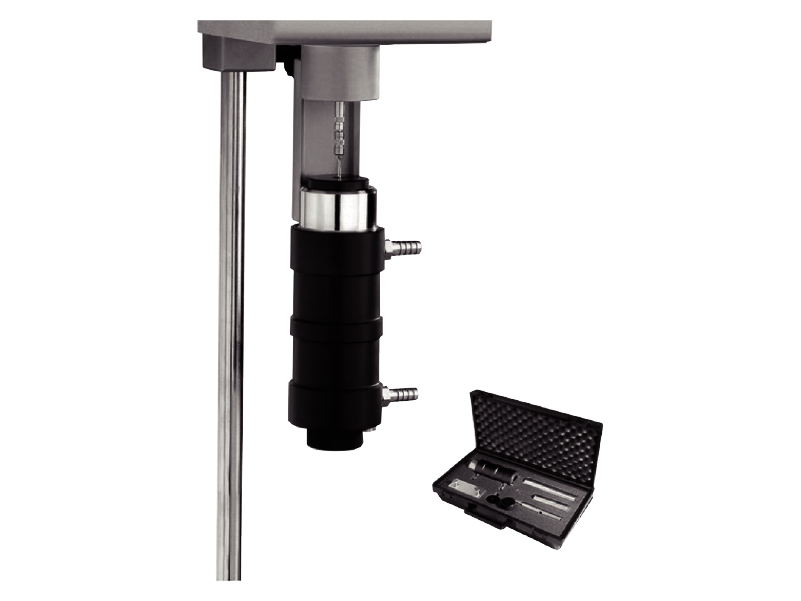

The adapter consists of a rotating cylindrical needle inside a machined tube.
Its correct rheological geometry provides great accuracy in viscosity and shear force.
Takes readings as low as 1 cP
Only a sample between 16 - 18 ml is required
Removable sample container for easy cleaning.
The water jacket is made of stainless steel with delrin rings.
Temperature range is -10ºC to 100ºC (14 - 212 ºF).
The temperature sensor is available as an optional accessory.
Characteristics
-Viscosity Range:
-L Series: 1.0 - 2,000 mPa xs
-Series R: 5.0 - 21,333 mPa xs
Includes:
-Needle
-Chamber for sample
-Mounting bracket
-Hook type closures
-Case
-Data sheet
-Water chamber
