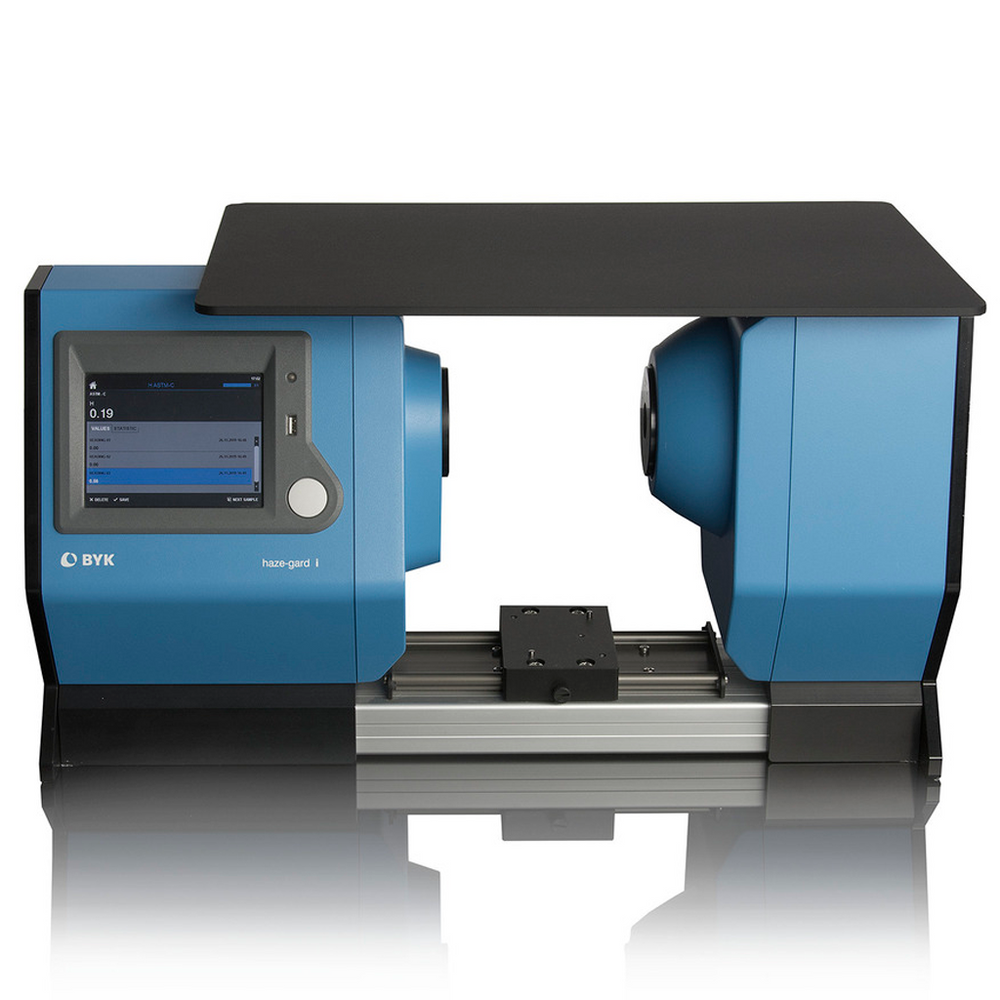

Haze Gard i Pro

Measurement of all transparency criteria in a single instrument:

• Total transmittance/transparency.
• Veil or turbidity (Haze).
• Image clarity or sharpness.

• Optimized for haze levels <0.3% with close tolerance.

Characteristics:

• Simultaneous measurement of transmission and veil according to.
• ASTM D1003 – illuminants C and A (uncompensated method).
• ISO 13468 – illuminant D65 (compensated method).
• Open measuring compartment – ​​Quickly change and place large and small samples.
• Reference beam, self-diagnosis and closed optics ensure accurate and reliable readings at any time.
• Automatic and long-term calibration of the veil meter that allows easy operation.
• 10-year warranty on the LED light source – Stable results for many years.
• Versatile sample holder for films and sheets.
• Horizontal and vertical mounting convenient sample handling for any application.
• Footswitch for hands-free operation.
• Large color touch screen with symbols to select menu functions.
• Complete statistics and colorful Pass/Fail analysis.
• Direct data transfer via LAN, USB port or via USB memory.
• Professional data documentation and analysis with smart-lab haze software.

Specifications:

• Memory: 5000 readings

• Interface: LAN, USB 2.0, additional front USB-port for memory stick

• Languages: English French German Italian Spanish Chinese Japanese Russian

• Power: 115/230 V self adapting

• Weight: 18kg

• Weight: 40 lb

• Operating temperature: 10 - 40 °C

• Storage temperature: 0 - 50 °C

• Operating Temperature: 50 - 104°F

• Storage temperature: 32 - 122°F

• Dimensions L x W x H: 62 x 22 x 33 cm

• Dimensions L x W x H: 24 x 8 x 13 in

• Illuminants: CIE-C, CIE-A (ASTM D1003): CIE-D65 (ISO 13468, ISO 14782)

• Spectral response: CIE luminosity function and

• Geometry: 0°/diffus

• Measuring area: 18mm diameter

• Measuring area: 0.7 in diameter

• Sample port: 25.4 mm diameter

• Sample port: 1.0 in diameter

• Measuring range: 0 - 100%

• Repeatability (std dev): ± 0.1 units

• Reproducibility (std. dev.): ± 0.4 units

Includes:
- Guide carriage for sample holder.
- Clarity calibration standard.
- Foot switch.
- Magnetic black cover to keep the measurement port in the shade
- Power cable and USB cable.
- Smart-lab Haze software with 2 licenses to download.
- Certificate.
- Manual.
- 1/2 day training.
- Training.
