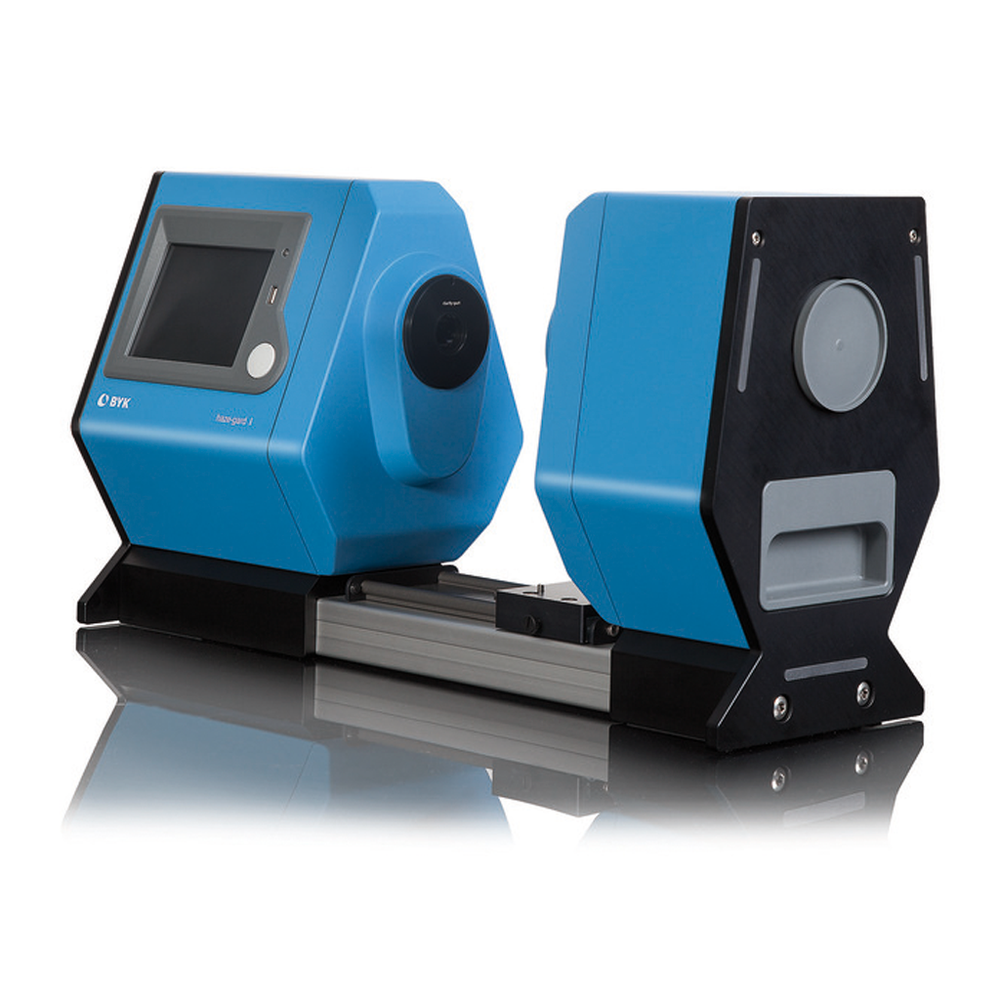

Haze Gard i

Haze Gard i quantifies visual perception with an objective measurement criterion

*Total transmittance/transparency
*Veil or turbidity (Haze)
*Clarity
*Complete transparency control with a single reading.
*Haze and transmittance control according to international standards such as ASTM D1003 and ISO 13468.
*Screen display of results simultaneously.
*New touch screen display.
*Easy use of the instrument for small and large samples, with easy change and positioning of the sample, without influence of ambient light.
*To facilitate use, its horizontal or vertical positioning makes it a flexible device for taking measurements.
*On-screen analysis, memory of up to 5000 readings, statistics such as averaging, min/max, standard deviation, pass/fail analysis allowing entry of limits in specifications.
*Professional connection for data transfer, via USB port to the PC, direct LAN connection to the Laboratory network for subsequent analysis, or simply save data on a USB memory.
*Smart-Lab Haze software, for data analysis defining the specifications of your products with pass/fail limits, measuring products online and obtaining immediate quality control reports, transfer of projects to the team and vice versa.

Specifications:
-Illuminants: CIE-C, CIE-A (ASTM D1003); CIE-D65 (ISO 13468, ISO 14782)
-Spectral Response: CIE luminosity function and
-Geometry: 0º / diffuse
-Measuring area: diameter 18 mm (0.7 in)
-Sample port: diameter 25.4 mm (1.0 in)
-Repeatability: +/-0.1 units (standard deviation)
-Reproducibility: +/-0.4 units (standard deviation)
-Memory: 5000 readings
-Interface: LAN, USB 2.8, additional front USB port for memory.
-Power: 115 V / 230 V self-adaptive.
-Operation temperature: 0 to 50 ºC
-Dimensions: 62 x 33 x 22 cm

Includes:
-Equipment
-Guide case for supports
-Clarity calibration standard
-Certificate with traceability
-Foot switch and power cord
-USB and LAN cable
-Software for download:
-Smart-lab haze with 2 licenses
-Operations manual
-Training.
