Temp-Gard Basic C, with clamping probes
$5,400.00
SKU
- DESCRIPTION
- DATA SHEET
- ACCESSORIES
-
Temperature recorder with 6 clamp thermocouples for quality control.
6 clamp probes: one air probe, 5 object probes.
easy-to-read color screen.
Basic temp-chart software included.
Lightweight thermal barrier included.
ideal solution for industrial coating applications.Characteristics:
- Small and modern data logger.
- Small and modern data logger.
- Large color screen to configure the measurement directly on the recorder.
- 6 high quality "K" type probes can be connected.
- Detection of connected probes.
- Temperature profile on screen.
- The USB interface provides easy data transfer for on-site evaluation.
- Long lasting battery with 2 AA alkaline batteries.
- Certified high precision for long-term reliable results.
Technical data:-
- Temperature range: 0 - 400°C.
-
- Temperature range: 32 - 752°F.
-
- Accuracy: ±0.5°C.
-
- Probes: 6 clamp probes = one air probe, 5 object probes.
-
- Resolution: 0.1°C (0.18°F) from 0 to 400°C (32 to 752°F).
-
- No. of channels: 6.
-
- Sampling interval: 0.1 sec up to 5 min.
-
- Thermal barrier dimensions: 27 x 21.5 x 14 cm (10.6 x 8.5 x 5.5 inches).
-
- Maximum duration: at 100ºC, 8.5 hours; at 200ºC, 2.5 hours; at 250°C, 2.0 hours.
-
- Memory: 240,000 readings.
-
- Interface: USB 2.0.
-
- Monitor: Color, 7.9 x 6 cm (3.1 x 2.4 inches).
-
- Battery capacity: 0.5 second interval = 25 hours (AA alkaline).
-
- Weight: 4.3 kilograms.

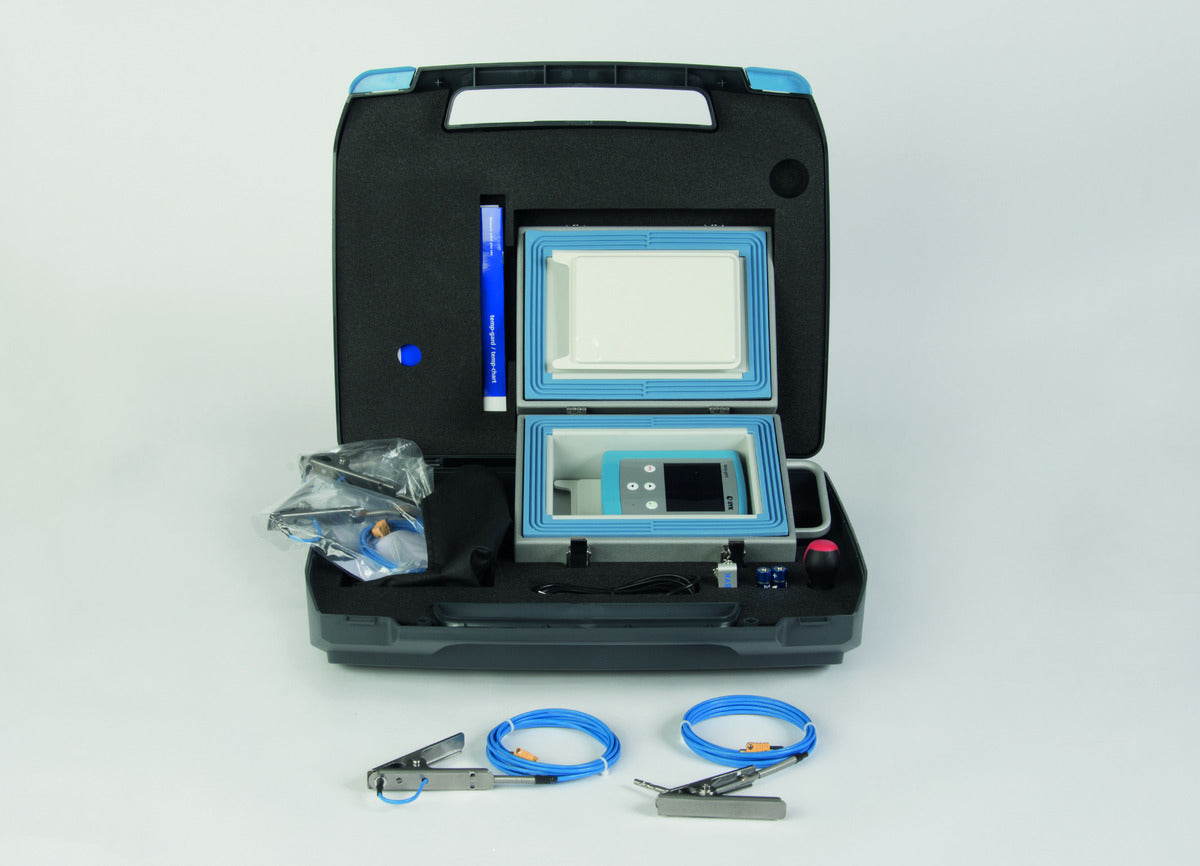

Temperature recorder.
6 clamp probes: Air probe C, 3 m, 5x Object probe A, 3 m.
Basic thermal barrier.
Basic heat sink .
USB interface cable.
2 AA batteries.
temp-chart basic software.
Certificate.
Manual.
Carrying case.
1/2 day training.
