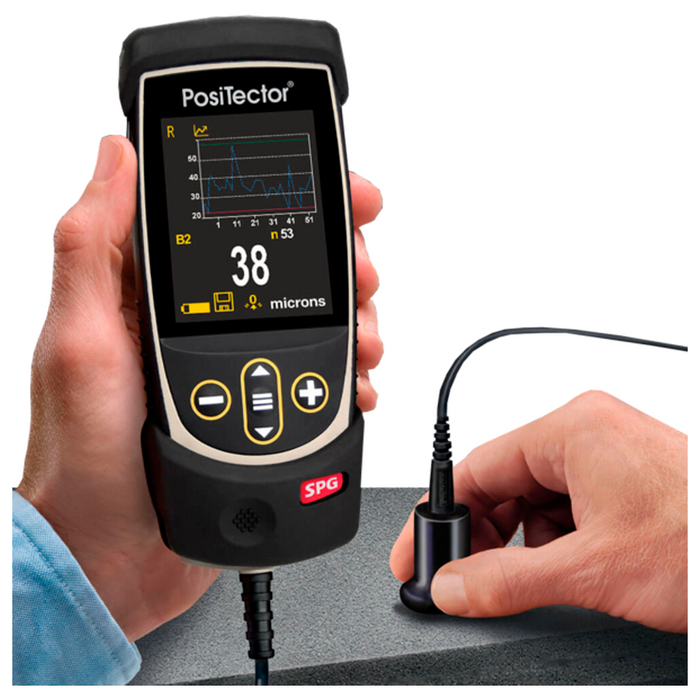

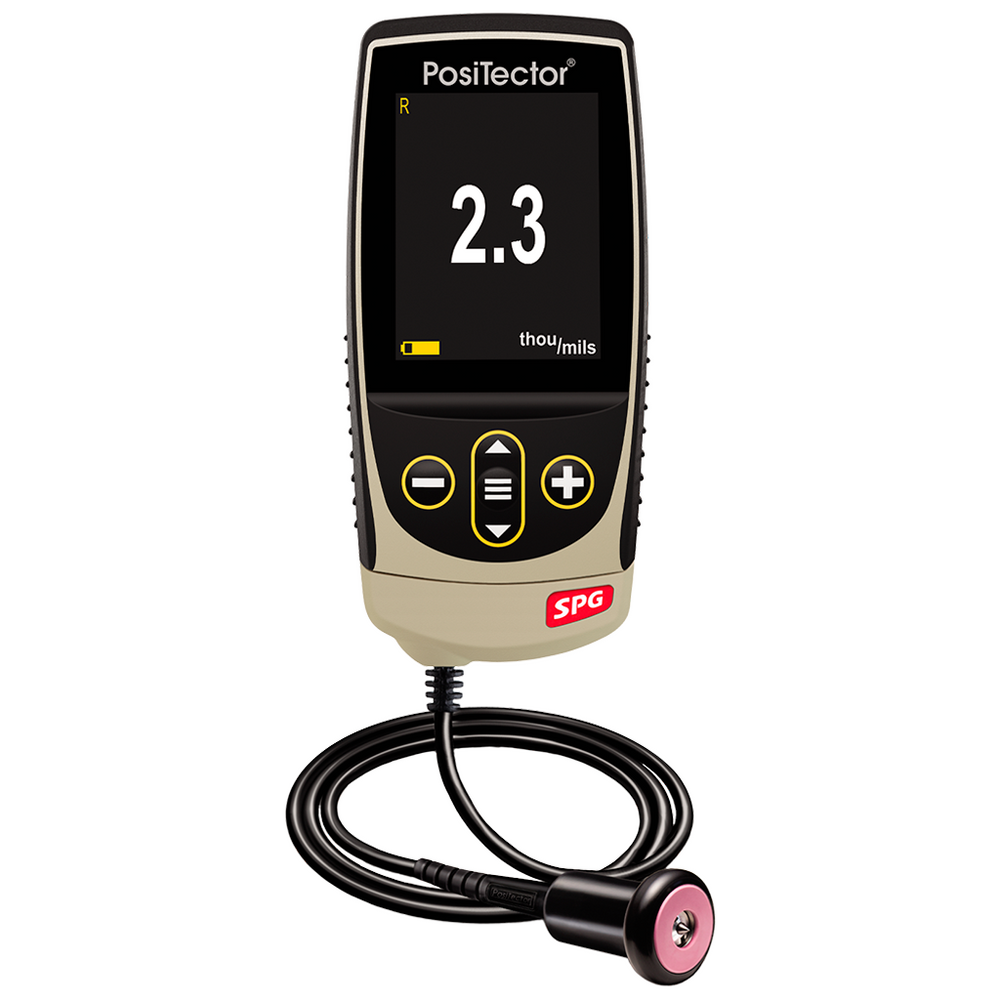

Standard SPG PosiTector SPGS1-E with separate 60° sensor
- DESCRIPTION
- DATA SHEET
- ACCESSORIES
-
Fast measurement speed of over 50 readings per minute, ideal for measuring large surfaces. The large, easy-to-read graphic LCD display, enhanced one-hand menu navigation, and RESET function instantly restore factory settings.
Standard model :
- Monochrome screen.
- Storage of 250 readings: Stored readings can be viewed or downloaded.
- Angle: 60 degrees.
Characteristics
- Ergonomic design with durable rubber grip .
- Larger 2.8" impact resistant color touch screen .
- In-meter help explains menu items at the touch of a button.
- Instant on feature turns the meter on in a fraction of a second if it was recently turned off.
- Weather, dust and water resistant: IP65 rated housing and shock absorbing rubber sleeve are ideal for harsh environmental conditions.
- Up to 30% longer battery life.
- Updated, streamlined user interface retains the same familiar menu structure for easy one-handed menu navigation with or without gloves.
- Universal 1/4"-20 mounting point to secure gauge to optional belt clip and other accessories.
- Backwards compatibility with all Positector probes manufactured since 2012.
- Automatic rotating screen lock when the meter is rotated unintentionally.
- Store up to 100 screenshots in memory.
- Continuously displays/updates the average, standard deviation, minimum/maximum and number of readings during measurement.
- Long format calibration certificate containing actual measurements included.Technical data Measuring range: 0 - 500 μm (0 - 20 mils) Precision: ± (5 μm + 5%) ± (0.2 mil + 5%) Size:
5.4” x 2.4” x 1.1” (137 x 61 x 28 mm) Weight:
4.9oz. (140 g) without batteries. According:
ASTM D 4417-B, AS-3894.5-C (with optional 30° tip angle), US Navy NSI 009-32, SANS 5772 and others.

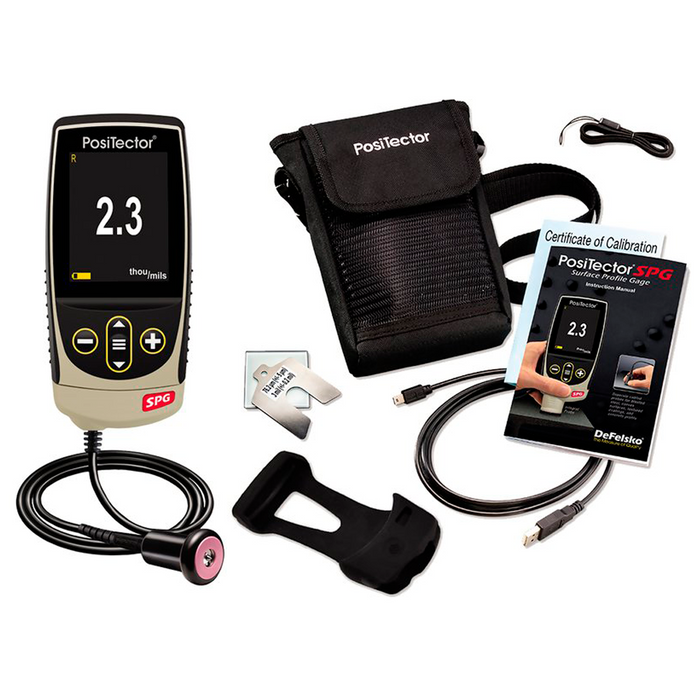

What includes:
- Meter, glass zero plate.
- Metal wedge.
- Protective rubber case with belt clip.
- Wrist strap.
- 3 AAA alkaline batteries.
- Nylon carrying case with shoulder strap.
- Protective lens protector.
- Long format calibration certificate traceable to NIST.
- USB Cable.
- Two years warranty.
- Instructions.
