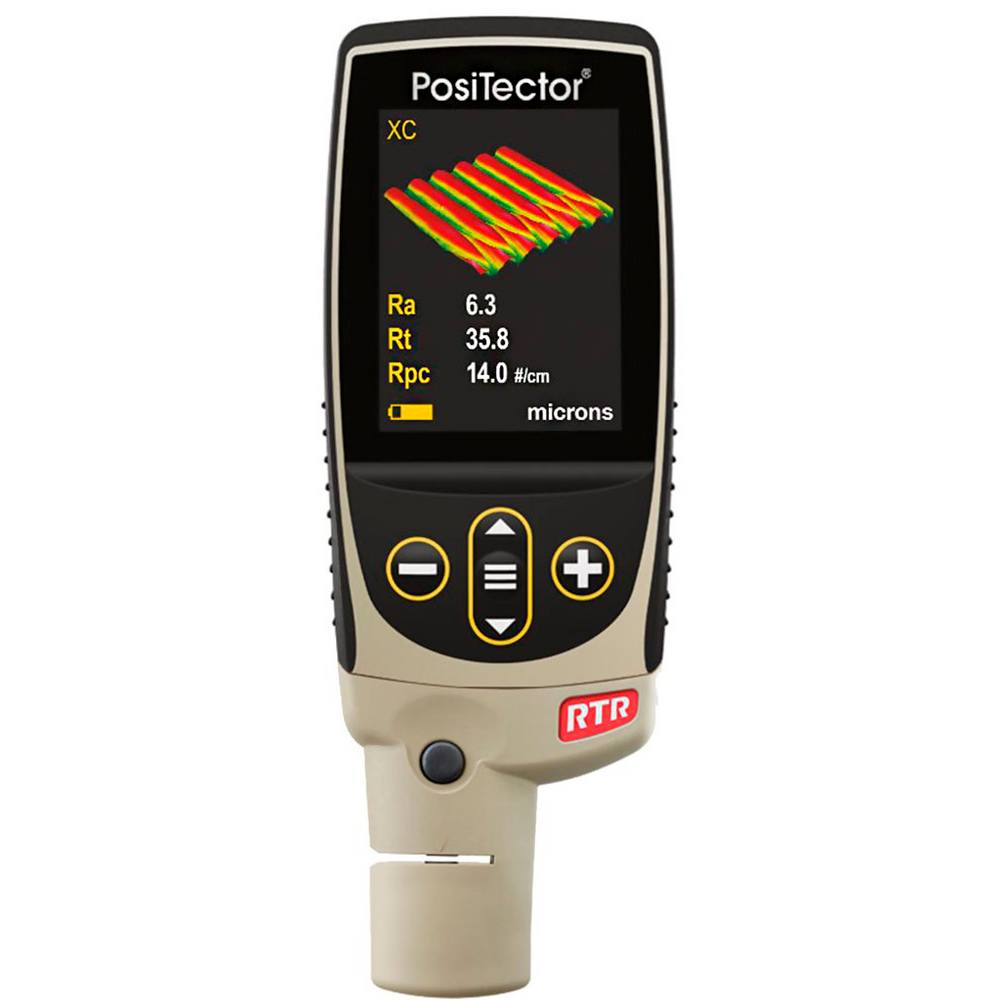

PosiTector RTR3D Replica Tape Reader, Advanced Model
- DESCRIPTION
- DATA SHEET
- ACCESSORIES
-
Electronic surface profile gauge for polished steel and textured coatings.

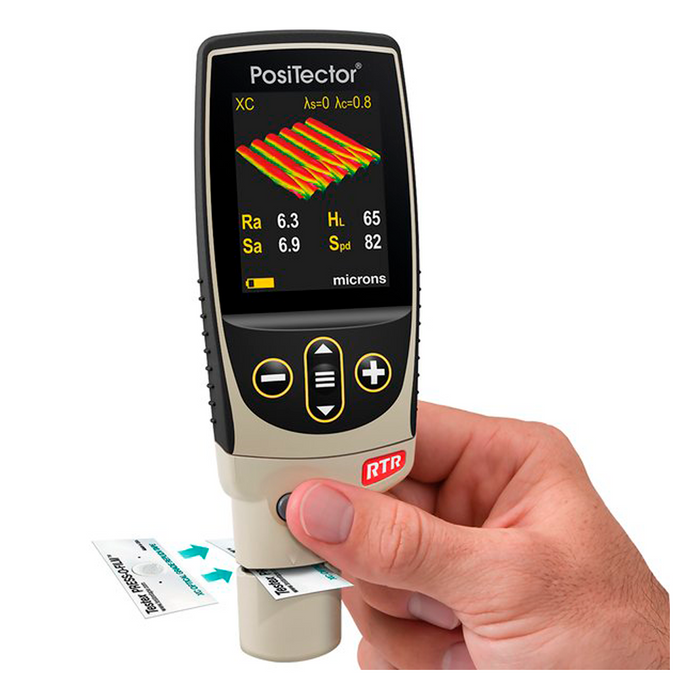

The PosiTector Replica Tape Reader (RTR H) is a handheld electronic instrument that measures polished Testex Press-O-Film TM replica tape to produce peak-to-valley surface profile height measurements. It consists of a PosiTector body (Standard or Advanced) and probe.
Characteristics:
- Storage of 250,000 readings from multiple probes in up to 1,000 batches.
- Live graphs of measurement data.
- Touch screen keyboard to quickly rename batches, add notes and more.
- WiFi technology wirelessly syncs with PosiSoft.net and downloads software updates.
- Bluetooth 4.0 technology for data transfer to a mobile device running the PosiTector app or an optional portable printer. BLE API available for integration into third-party software.
- Integration with third-party software, drones, ROV, PLC and robotic devices using standard communication protocols.
- No calibration adjustment required for applications.
- Larger 2.8" impact-resistant color touchscreen with redesigned keyboard for quick menu navigation.
- Weather, dust and water resistant: IP65 rated housing.
- Interchangeable PosiTector platform: connect any PosiTector probe to a single gauge body.RTR3D Technical Data Measuring range:
(H) 20 - 115 µm / 0.8 - 4.5 mils Rt) 10 - 115 µm / 0.4 - 4.5 mils Minimum roughness (Ra): 2µm / 0.08 mil Accuracy: (H) +5 µm / +0.2 mil (Rt)* +(5 µm + 5%) / +(0.2 mil+ 5%) (Ra)* +(0.25 µm + 5%) / +(0.01 mil + 5%) Anvil pressure: 1.1 Newtons / 110 gram-force Anvil size: Ø6.25 mm / Ø0.25 inch Field of view: 3.8 x 3.8mm/0.149 x 0.149inch Lateral sampling: 3.7 µm 0.145 mil Vertical resolution: 100nm - 2D/3D
10nm - SDF
3.93 µin - 2D/3D
0.393 µin - SDF
Resolution: 0.1 µm 0.01 mil *When measured with X-Coarse optical grade replica tape

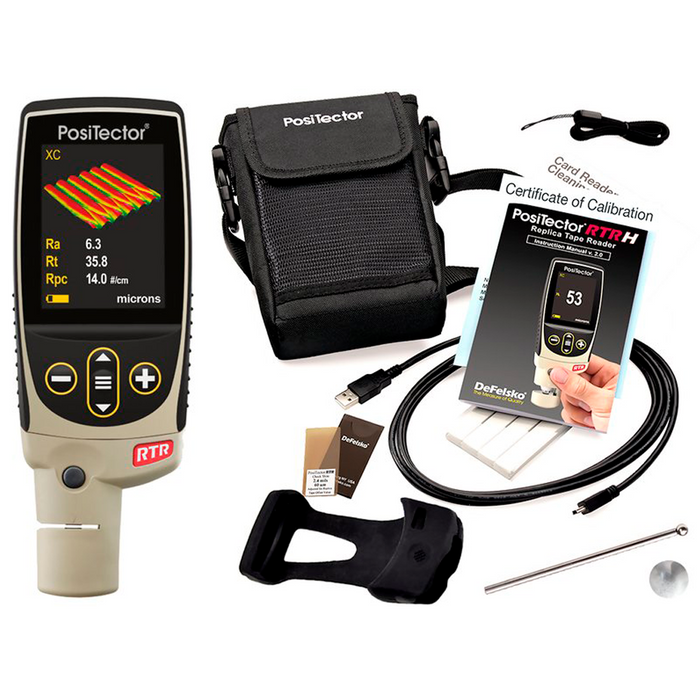

What includes:
- Advanced replica tape reader.
- Stainless steel polishing tool.
- Burnishing ball.
- 5 cleaning cards.
- Verification plates.
- Microfiber cleaning cloth.
- Surface cleaning putty.
- Protective rubber cover.
- Wrist strap.
- 3 AAA alkaline batteries.
- Instructions.
- Nylon carrying case with shoulder strap.
- Lens protective shield.
- Long-form calibration certificate (containing Ra and Rt values) traceable to an accredited national laboratory.
- USB Cable.
- PosiSoft software.
- Two years warranty on the body and probe.
