StripLOK Bonding System

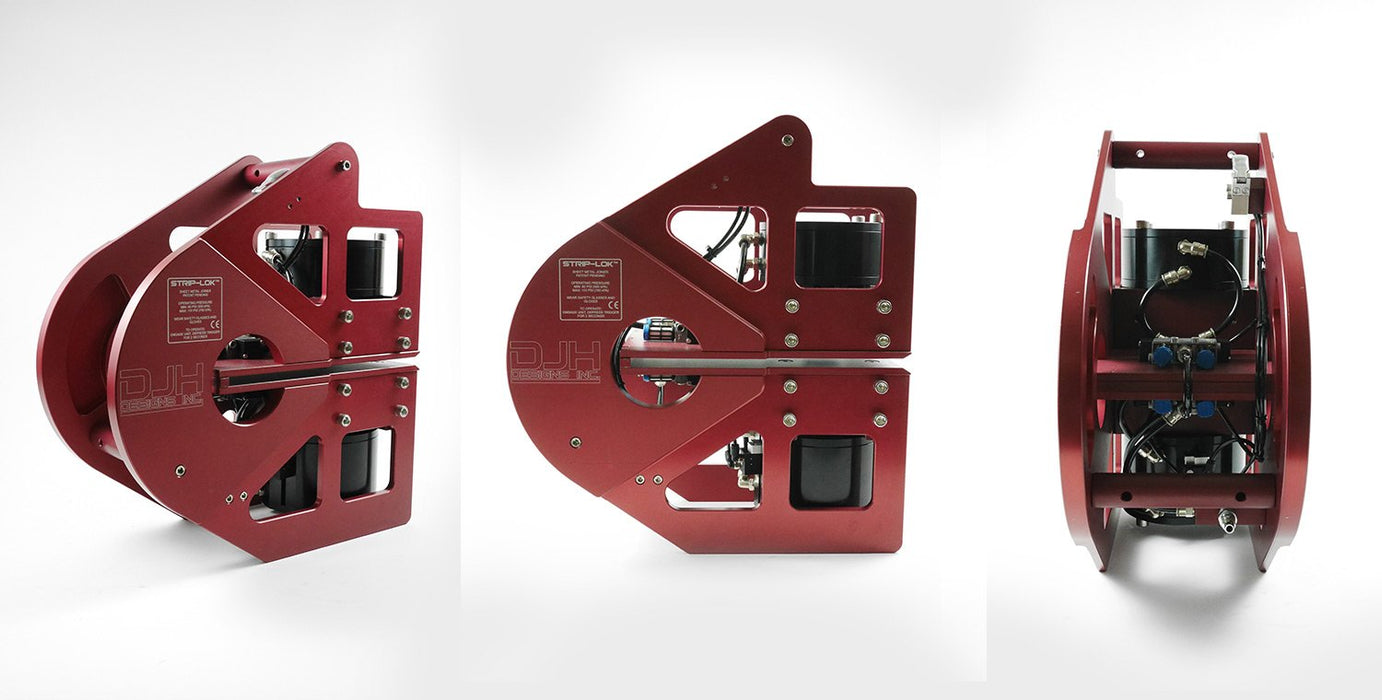

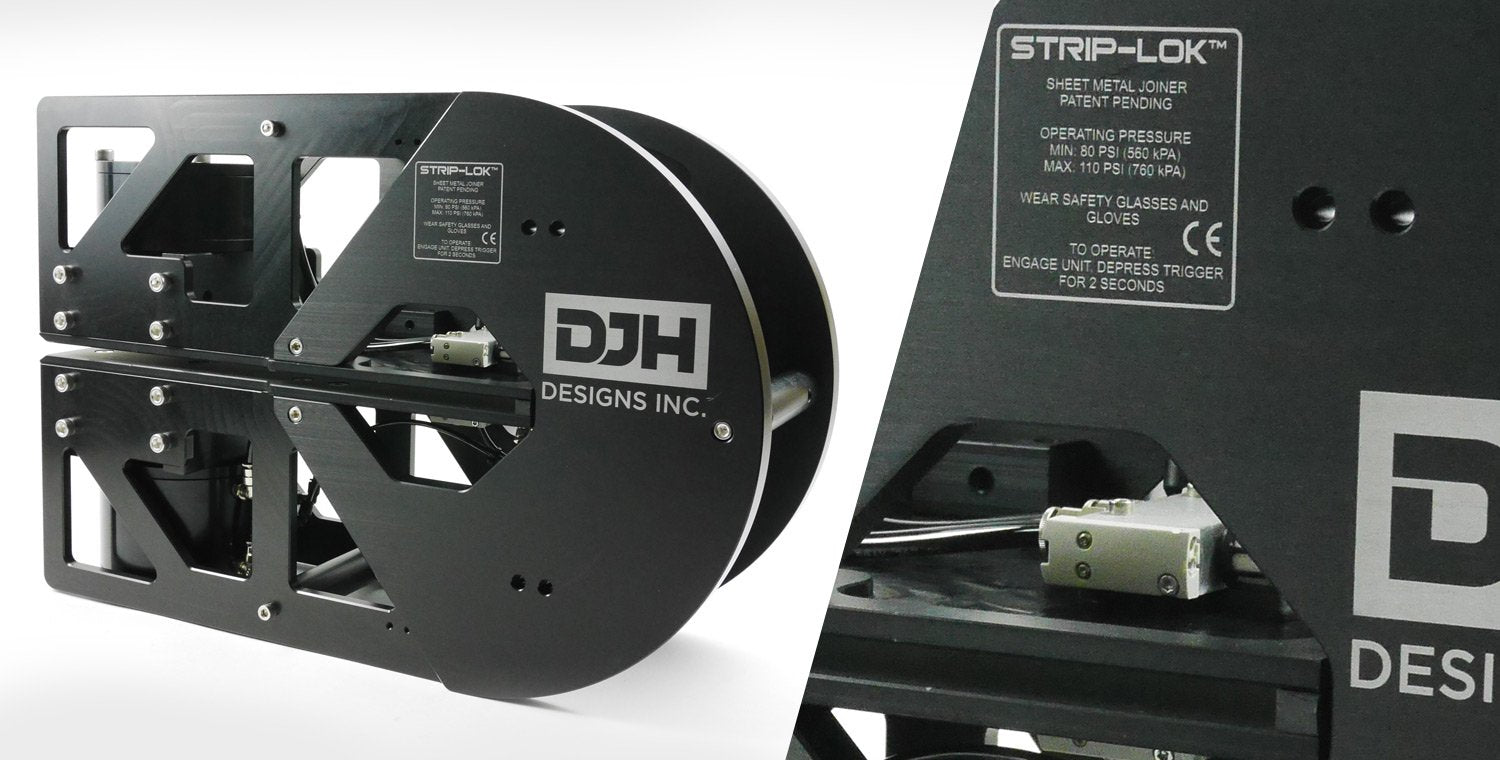

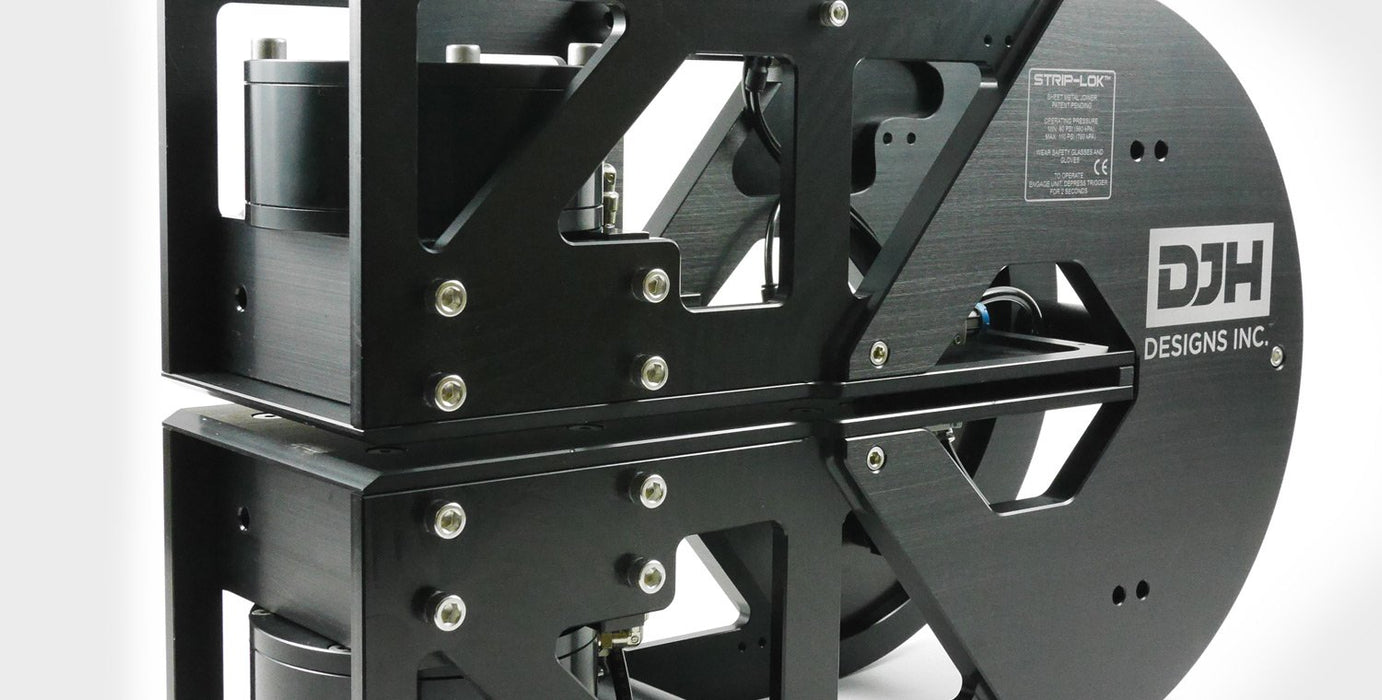

Strip-LOK™ Sheet Metal Joiner is a portable compressed air powered strip joining machine.

Designed for use with aluminum or steel substrates, this is the best advancement in economical, efficient and effective belt joining equipment in decades.

Strong, repeatable connections can be achieved with a total sheet thickness of up to 1.8 mm.

As a rule of thumb, 20 punches on each side of 0.4 mm soft iron sheets provide a tensile force of about 25 kN.

Available Models

LR-HG High Range System

System with low pressure application LR-HG

HG Traditional Scope System

HG-LP traditional low pressure tank system

Specifications:

Air Pressure: 600 - 760 kPa (86 - 110 PSI)

Dimensions: L 476 x W 175 x H 320 mm

Depth 300 mm (11.8 in)

Aperture 8 mm (0.8 in)

Maximum Strip Thickness @ 700 kPa (100 PSI): Mild Steel 2 @ 0.9 mm (0.035 in) Hard Steel 2 @ 0.7 mm (0.028 in)

The published price belongs to LR-HG

For information and pricing on systems, please contact your sales representative.
