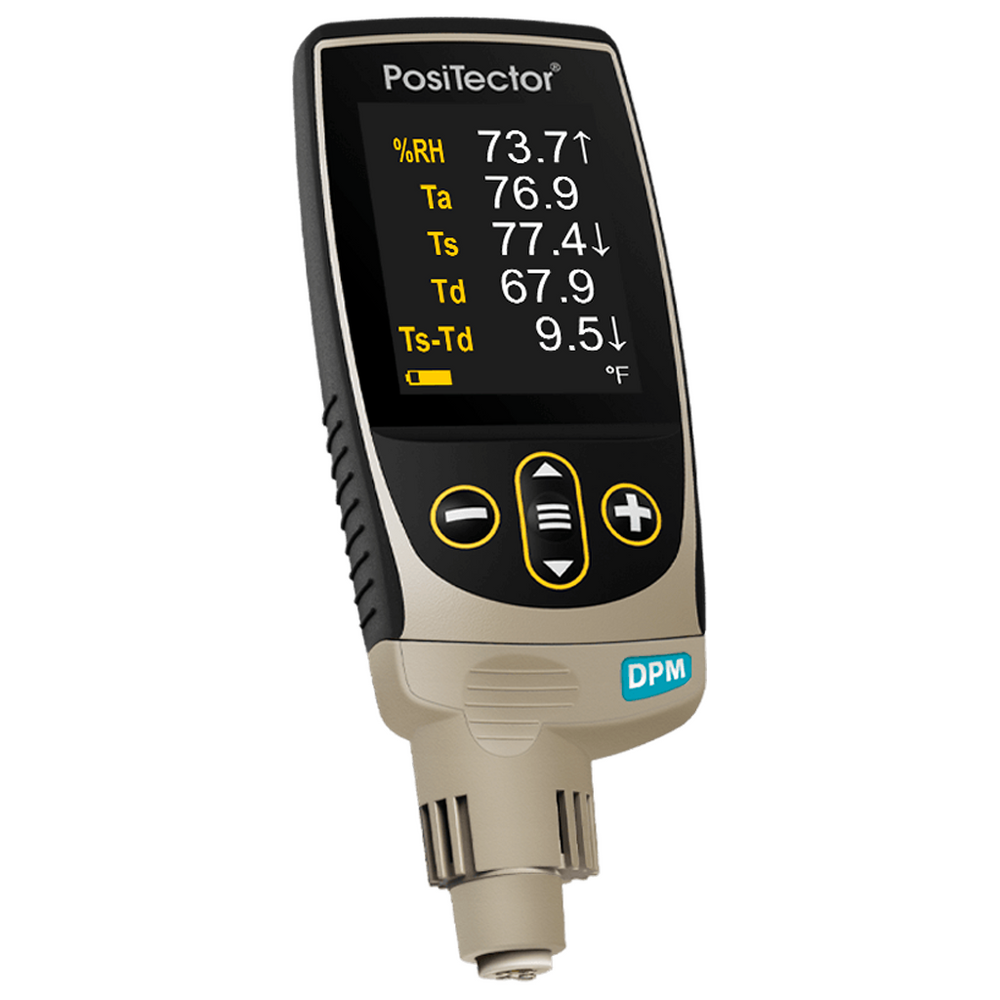

Advanced DPM Positector with probe
- DESCRIPTION
- DATA SHEET
- ACCESSORIES
-
Advanced model
- High contrast reversible color LCD.
- Storage of 100,000 readings in up to 1,000 batches and subbatches.
- Smart Batch allows the entry of user-defined parameters and criteria to comply with international standards.
- On-screen help, real-time graphics, image prompts and batch notes.
- Data transfer via USB to a PC or via Bluetooth wireless technology to a PC or printer.
Characteristics
- Ergonomic design with durable rubber grip for comfortable inspection all day long.
- Larger 2.8" impact-resistant color touchscreen with redesigned keyboard for quick menu navigation.
- Touch screen keyboard to quickly rename batches, add notes, and more (advanced only).
- In-meter help explains menu items at the touch of a button.
- Instant on feature turns the meter on in a fraction of a second if it was recently turned off.
- Weather, dust and water resistant: IP65 rated housing and shock-absorbing rubber sleeve are ideal for the harshest environmental conditions, including an unexpected storm.
- Up to 30% longer battery life.
- Updated, streamlined user interface retains the same familiar menu structure for easy one-handed menu navigation with or without gloves.
- Universal 1/4"-20 mounting point to secure gauge to optional belt clip and other accessories.
- Backwards compatibility with all Positector probes manufactured since 2012.
- Automatic rotating screen lock when the meter is rotated unintentionally.
- Store up to 100 screenshots in memory.
- Continuously displays/updates the average, standard deviation, minimum/maximum and number of readings during measurement.
- Live graphs of measurement data (advanced models only).
- Long format calibration certificate containing actual measurements included.Technical data Specifications
Range Precision
Resolution Surface temperature: -40° to 80°C ±0.5°C 0.1°C 80° to 190°C ±1.5°C -40° to 175°F ±1°F 0.1°F 175° to 375°F ±3°F Infrared surface temperature: * -70° to 380°C ±1°C + (0.01°C/°C)** 0.1°C -94° to 716°F ±2°F + (0.01°F/°F)** 0.1°F Air temperature: -40° to 80°C ±0.5°C 0.1°C -94° to 716°F ±1°F 0.1°F Humidity: 0 to 100% ±3% 0.1% Wind speed:† 0 to 20m/s ±3% Full scale 0.1m/s 0 to 44mph 0.1 mph Dew point: -60° to 80°C ±3°C‡ 0.1°C -76° to 175°F ±5.4°F‡ 0.1°F Size & Weight: 6.25 x 2.4 x 1.2 inches. (159 x 61 x 31mm)
5.3oz. (150 g) without batteries.*DPM IR models only
**A = 23°C
† DPM A models only
‡ Depends on RH
What includes:
- Humidity sensors.
- Air and surface temperature.
- Protective rubber case with belt clip.
- Wrist strap.
- 3 AAA alkaline batteries.
- Instructions.
- Nylon carrying case with shoulder strap.
- Protective lens protector.
- Long format calibration certificate traceable to NIST.
- USB Cable.
- Two years warranty.
