Kit D, DeFelsko adhesive patch kit with probe and standard equipment
- DESCRIPTION
- DATA SHEET
- ACCESSORIES
-

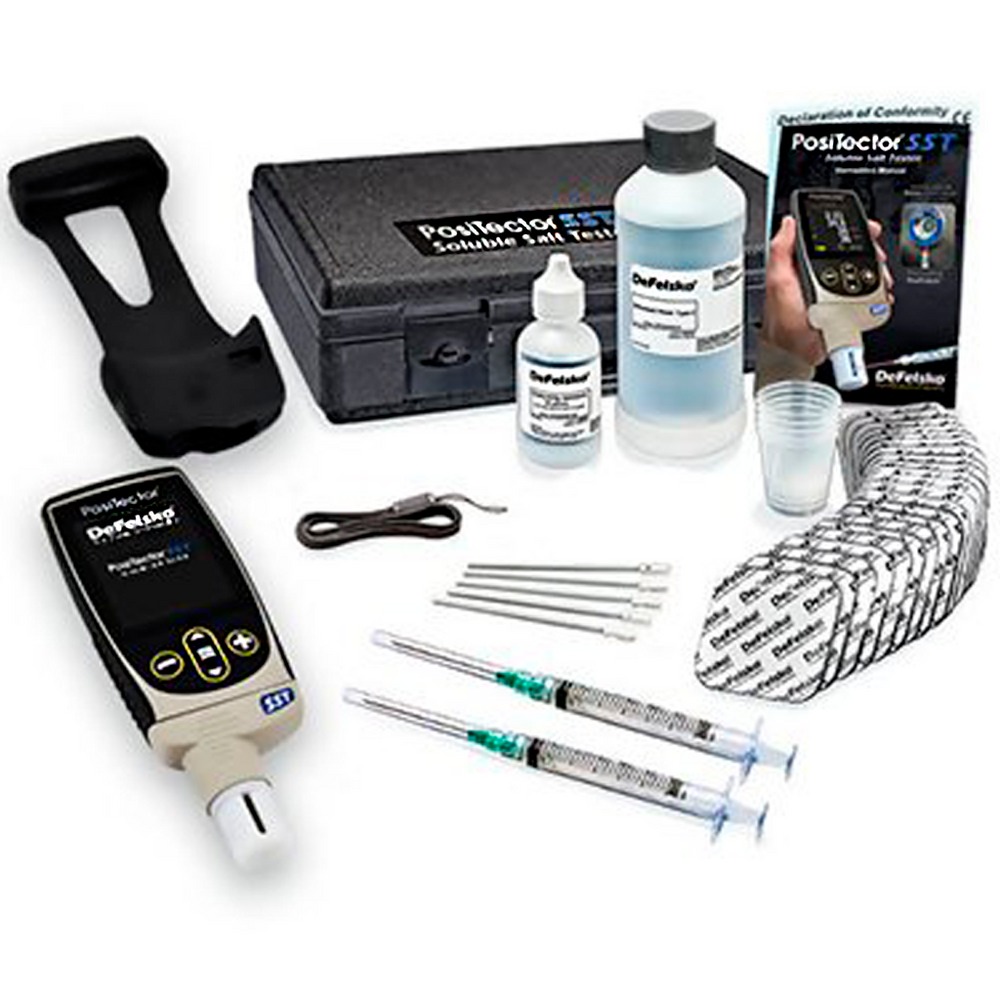

Kit D, DeFelsko adhesive patch kit with probe and standard equipment includes:
- PosiTector BDYSTD-G standard gauge equipment.
- PosiTector SST PRBSST probe.
- DeFelsko adhesive patch (25).
- Syringe and needle (2).
- 250 ml of deionized water and cup (5).
- Protective rubber cover.
- Wristband and protective screen for lenses.
- Foam swabs (5), belt clip.
- 3 AAA alkaline batteries.
- PosiSoft software and USB cable.
- Certified conductivity standard.
- Long format calibration certificate traceable to NIST.
- Convenient hard carrying case and instructions.
- Two-year warranty.
Standard model
Storage of 250 readings: stored readings can be viewed or downloaded
Positector Features:
- Ergonomic design with durable rubber grip for comfortable inspection all day long.
- Larger 2.8" impact-resistant color touchscreen with redesigned keyboard for quick menu navigation.
- In-meter help explains menu items at the touch of a button.
- Instant on feature turns the meter on in a fraction of a second if it was recently turned off.
- Weather, dust and water resistant: IP65 rated housing and shock-absorbing rubber sleeve are ideal for the harshest environmental conditions, including an unexpected storm.
- Up to 30% longer battery life.
- Updated, streamlined user interface retains the same familiar menu structure for easy one-handed menu navigation with or without gloves.
- Universal 1/4"-20 mounting point to secure gauge to optional belt clip and other accessories.
- Backwards compatibility with all Positector probes manufactured since 2012.
- Automatic rotating screen lock when the meter is rotated unintentionally.
- Store up to 100 screenshots in memory.
- Continuously displays/updates the average, standard deviation, minimum/maximum and number of readings during measurement.
- Long format calibration certificate containing actual measurements included.Technical data Range: 0 - 500 µS/cm, 0 - 2000 mg/m 2 , 0.0 - 200.0 µg/cm 2 Resolution: 1 µS/cm*, 1 mg/m 2 , 0.1 µg/cm2 Precision: +/- 2 µS/cm (0 - 200 µS/cm)
+/- 10 µS/cm (201 - 500 µS/cm)Temperature range: 0 - 50°C (32 - 122°F) Normalization temperature: 25°C (77°F) Test cell volume: 1ml * High resolution mode 0.1 µS/cm (0-200 µS/cm)
* Size: 165 x 61 x 28mm (6.5" x 2.4" x 1.1")
* Weight: 140 g (4.9 oz) without batteries
Ordering Guide Meter/probe only Kit P: PosiPatch Kit
D-Team: DeFelsko
Adhesive patch kitKit L: Latex
Adhesive patch kitStandard body + Probe2: CD-660101 CD-660110 CD-660120 CD-660130 Advanced Body + Probe2: CD-660201 CD-660210 CD-660220 CD-660230 Probe 1 only: CD-660301 CD-660310 CD-660320 CD-660330 What is included: Nylon case with shoulder strap
(CD-660101 and
660201 only)PosiPatch (5), Magnetic Ring (replace flexible magnetic ring add /F to part number), Syringe and Plastic Tip (2), 500 mL DI Water, Cup (5), and Hard Case
DeFelsko Adhesive
Patch (25)DeFelsko Adhesive
Patch (25) Latex adhesive
Patch (25)Syringe and Needle (2), 500 ml DI Water, Cup (5) and Hard-shell Carrying Case 1.- PosiTector SST Probe Only models come complete with: certified conductivity standard, foam swabs (5), long-form calibration certificate traceable to NIST, instructions, PosiSoft software, two (2) years warranty.
2.- PosiTector SST Standard / Advanced Body + Probe models come complete with: protective rubber case, certified conductivity standard, foam swabs (5), NIST-traceable long-form calibration certificate, belt clip, safety strap doll, 3 AAA alkaline batteries, instructions, protective lens screen, USB cable, PosiSoft software, two (2) years warranty.
