Shadow Meter / Cloud Runner

Controls and Ensures a uniform finish
Mottling greatly affects color harmony
These irregular variations can be measured objectively
Specks from small to large are measured under 3 observation angles
Objective measurement is independent of curvature and color
Small size for easy handling in production

Technical specifications:
◦Cloud size: Md 6 to 13 mm, Me: 11 to 24 mm Mf 19 to 42 mm, Mg 33 to 72 mm, Mh 57 to 126 mm, Mi 100 to 200 mm
◦Repeatability: 5% or >0.5
◦Reproducibility: 8% or > 0.8
◦Object curvature: radius >500mm
◦Scan length: 10 to 100 cm, selectable every cm
◦Resolution: 25 points/cm
◦Measurement Time:
◦Memory: 1000 readings
◦Interface: USB 1.1
◦Language: English, French, German, Italian, Japanese, Portuguese, Spanish
◦Light source: White LED
◦Dimensions: 150x1100x55 mm (5.9x4.3x2.2 in)
◦Weight: 650 g (1.5 lbs)
◦Power source: rechargeable battery, approx 1500 redings
◦Temperature range: operation +10°C to 40°C, storage 0°C to 60°C
◦Humidity: up to 85% at 35° without condensation

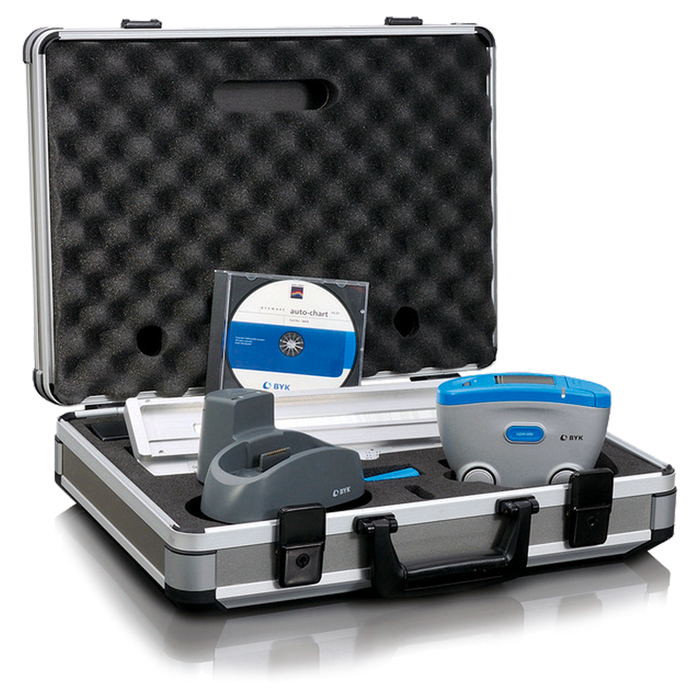

Includes:
◦Instrument
◦Reference ceramic with certificate
◦Auto-chart software
◦Docking station with USB
◦2 rechargeable Li-Ion battery packs
◦Operation manual
◦Case
◦On-site training.
