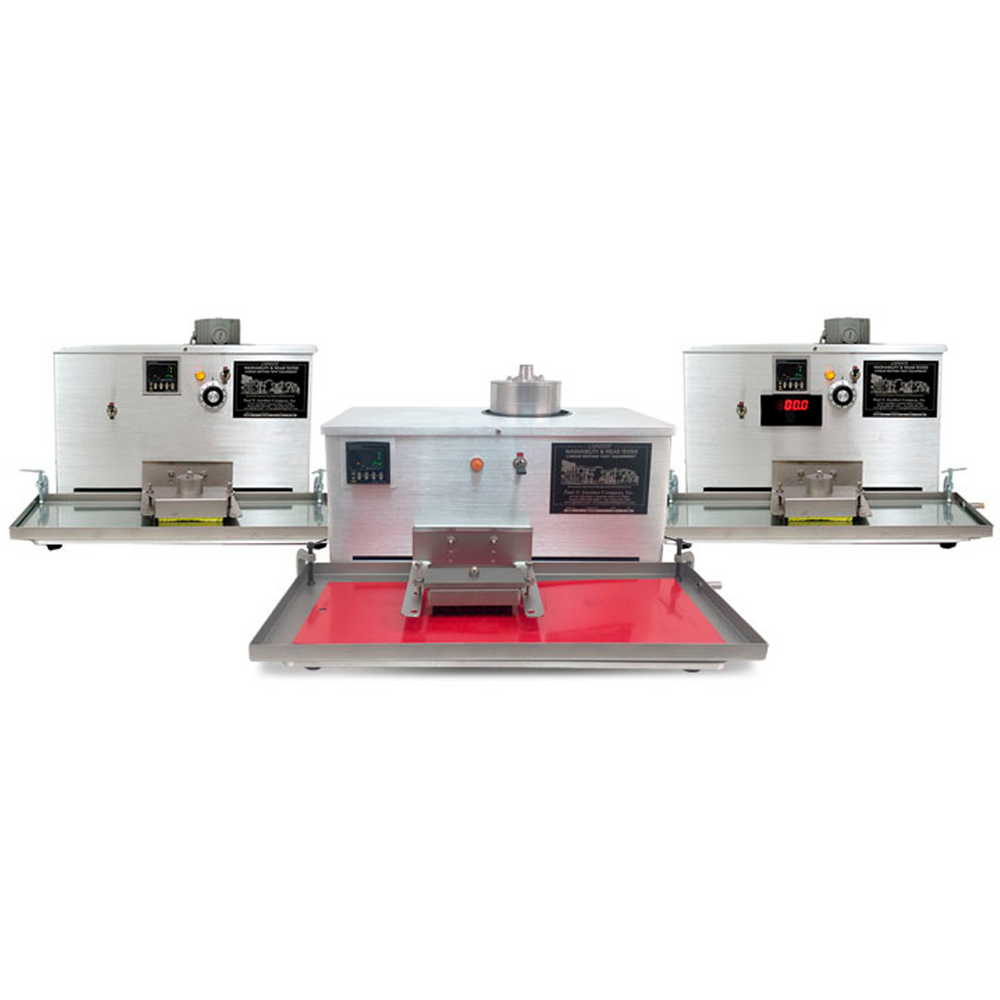

D12V, variable speed model with cutout base
- DESCRIPTION
- DATA SHEET
- ACCESSORIES
-
He Model D12V, when equipped with test sample tray, serves as a laboratory machine. This model has the base trimming function. When the tray is removed, an extended drive fork can be added to pass through an opening in the base plate. This allows a test to be carried out directly on the surface on which the machine is placed. Stainless steel handles are attached to the ends of the housing to improve portability for field use.
- Variable set control: allows accelerated testing. Possibly required in future specifications.
- Designed for current washability tests: Applicable to all currently established 37-speed cycle speed tests required in various specifications.
- ASTM Specifications: Applicable to tests that require the use of 37 cycle washability machines. FTMS, MIL, ISO and other specifications: Also applies to tests requiring a set speed, 37 cycle machines.
- Run three tests simultaneously: up to three multi-sample tests possible.
Base cutting feature: allows testing to be performed directly on the surface the machine is placed on; like the deck of a ship or the floor of a shopping center.
On-Site/Laboratory Use: An extended fork is required when testing is performed through the trimmed base. All models come with standard fork unless an extension is specified.
Handles: for portability to the test site. -
Technical data D10
(D1)D10V (DV1) D12V D10VF (DVF) D12VF D10VP Part number
WA-2151 WA-2153 WA-2163 WA-2164 WA-2155 WA-2166 WA-2653 Stroke length: 10" 10" 12" 12" 10" 12" 10" Linear Stroke 3kg Acceleration distance: 1.1" - 1.5" 1.3" 1.2" 1.2" 1.2" 1.2" 1.1" Cycles per minute: 37 6-60 5-50 5-50 6-60 5-50 15-45 Speed, in./sec.: 14 2.3-23 2.2-22 2.2-22 2.3-23 2.2-22 5.6-16.8 Tray size: 8"x18" 8"x18" 8"x24" 8"x24" 8"x18" 8"x24" 8"x18" Drive Fork Force Max lbs.: 24 Four. Five Four. Five Four. Five Four. Five Four. Five Four. Five Base Trim: - - - ✓ - ✓ - Variable speed: - ✓ ✓ ✓ ✓ ✓ ✓ Force detection: - - - - ✓ ✓ - Recorder option: - - - - - - -
