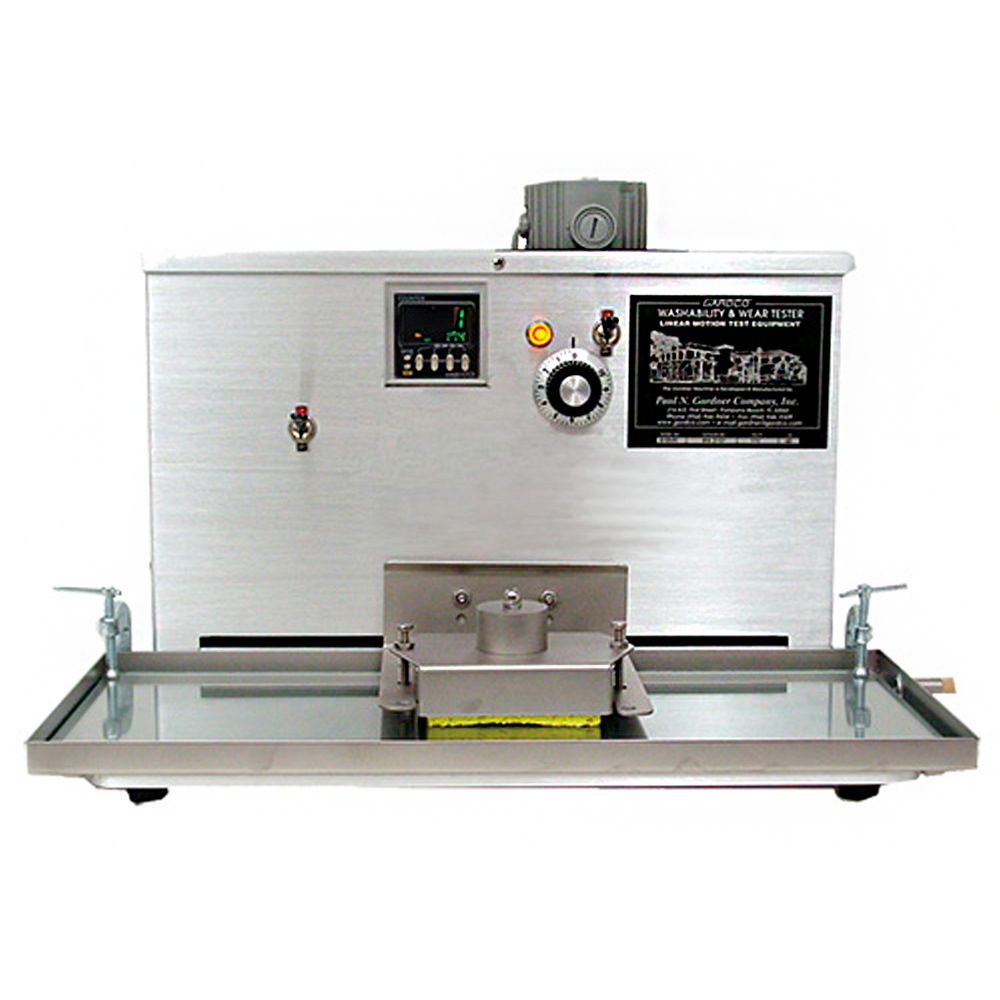

D10V, variable speed model
$9,999.00
SKU
- DESCRIPTION
- DATA SHEET
- ACCESSORIES
-
The D10V are variable speed models that have all the features of set speed models, plus variable speed, allowing for accelerated testing. Possibly required in future specifications.
Each model has its own stroke length for its particular application. The length of the stroke is centered and shortened from both sides. The speed limits shown for all variable cycle speed machines (cycles/min) are set at the factory, but can be changed for specific requirements. Instructions for this change are provided with the unit. -
Technical data D10
(D1)D10V (DV1) D12V D10VF (DVF) D12VF D10VP Part number
WA-2151 WA-2153 WA-2163 WA-2164 WA-2155 WA-2166 WA-2653 Stroke length: 10" 10" 12" 12" 10" 12" 10" Linear Stroke 3kg Acceleration distance: 1.1" - 1.5" 1.3" 1.2" 1.2" 1.2" 1.2" 1.1" Cycles per minute: 37 6-60 5-50 5-50 6-60 5-50 15-45 Speed, in./sec.: 14 2.3-23 2.2-22 2.2-22 2.3-23 2.2-22 5.6-16.8 Tray size: 8"x18" 8"x18" 8"x24" 8"x24" 8"x18" 8"x24" 8"x18" Drive Fork Force Max lbs.: 24 Four. Five Four. Five Four. Five Four. Five Four. Five Four. Five Base Trim: - - - ✓ - ✓ - Variable speed: - ✓ ✓ ✓ ✓ ✓ ✓ Force detection: - - - - ✓ ✓ - Recorder option: - - - - - - -
