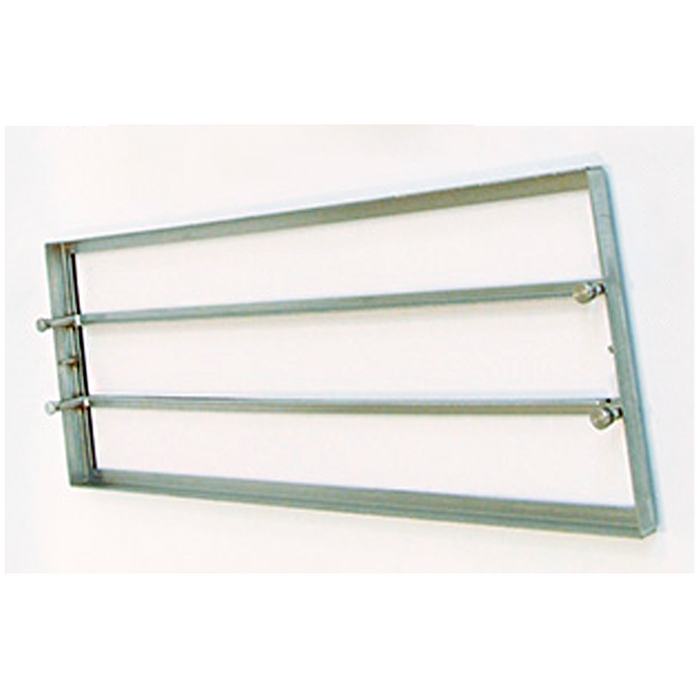

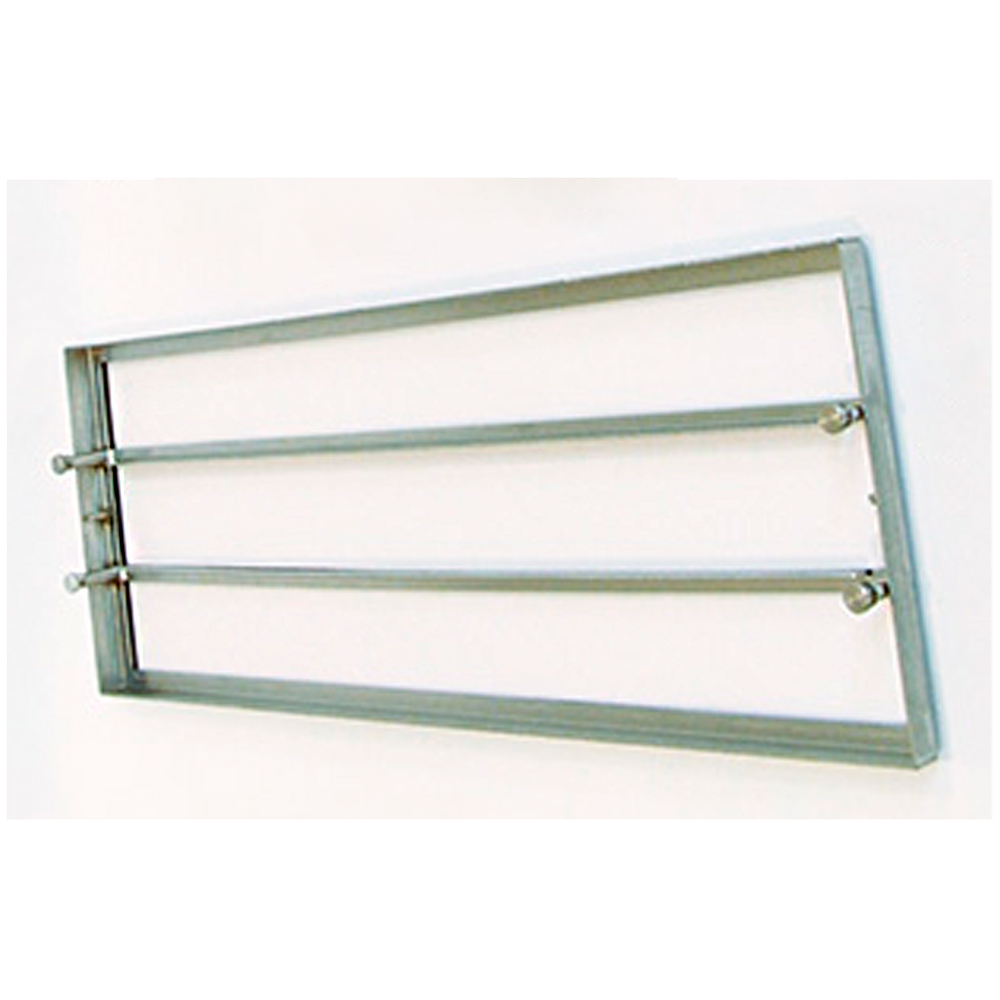

Lily Frame, 23.75" (Length)

The Lilly frame is designed for use with the test sample tray. There are two lengths, one for the 18" pan and one for the 24" pan. When held in place on the tray, the frame serves to isolate a portion of the test surface from a liquid used in the test. It also serves to hold flexible materials in place against the tray, glass plate or machine base. Please note that the sponge box cannot be used with the Lilly frame due to its width. Only one box of brushes or one abrasion can is allowed.

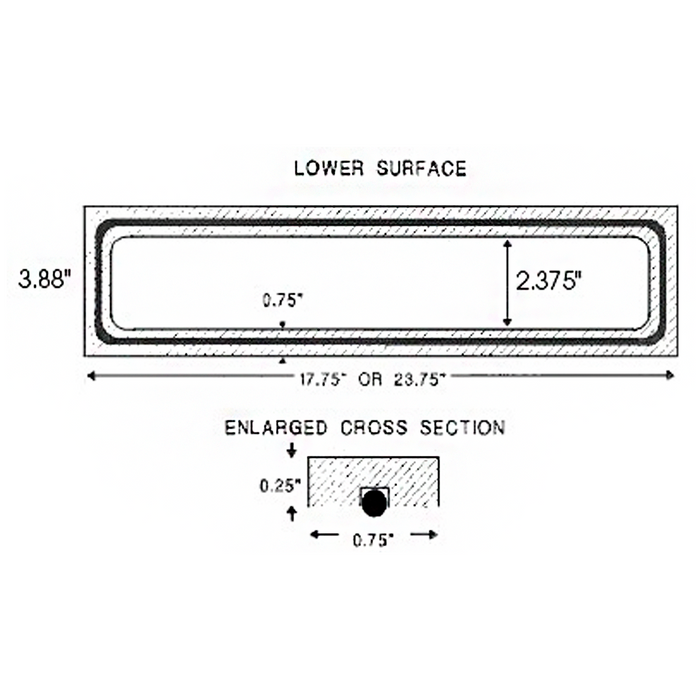

The Lilly frame has an overall length of 23.75. The frame is machined from 1/4" thick aluminum and sits in a slot in the bottom surface with a flexible gasket. Two 1-inch "C" clamps are supplied with each test sample pan and can be used to Secure the Lilly frame against the test surface.
