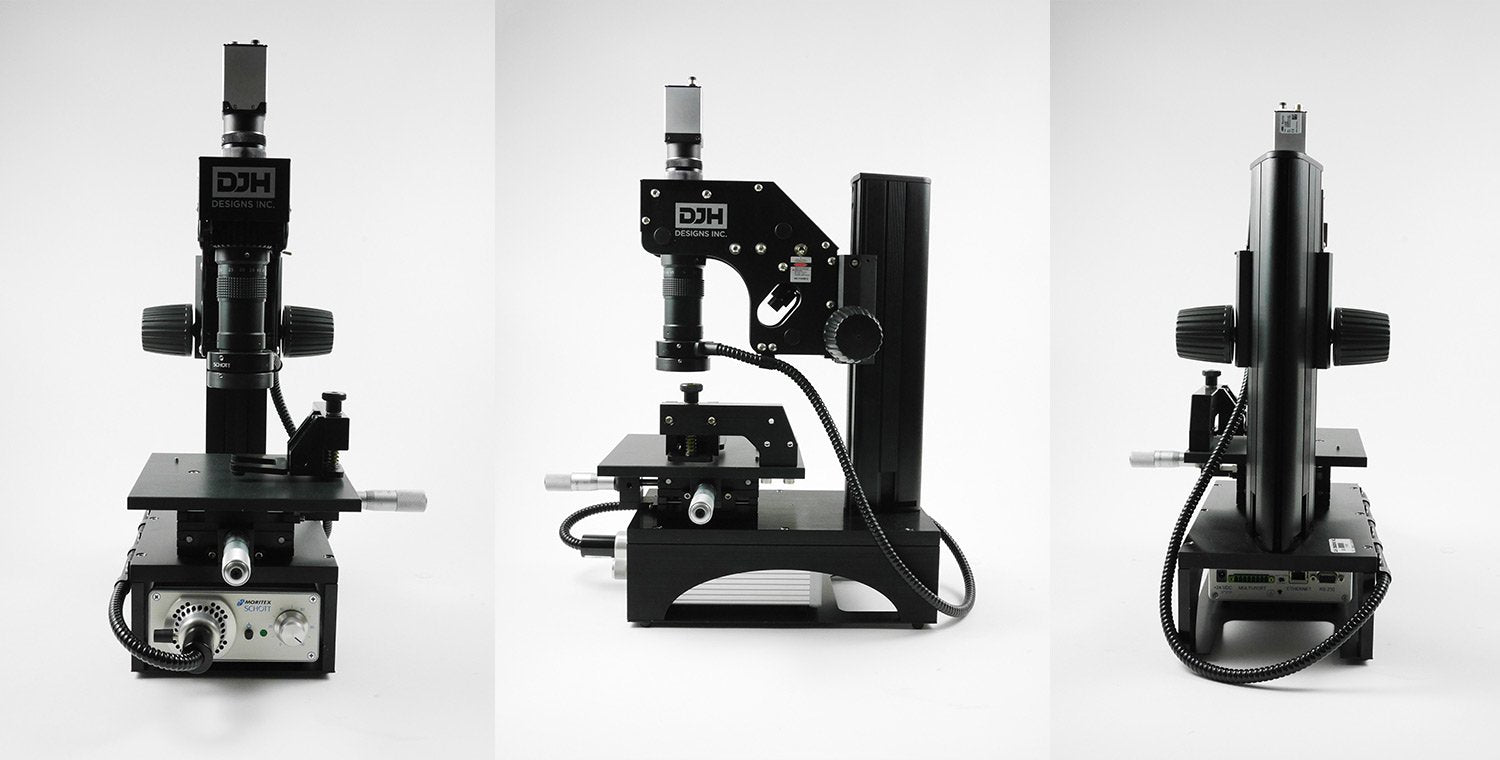

Dry Film Thickness Measurement System

Constant repeatability of environmental results, safe since it does not use solvents.

Low maintenance cost equipment
Fast and accurate
Take readings on primer, color coat and top coat in the same measurement.
Measures high thickness films (greater than 2 mil) using appropriate accessories.
Video system with multiple use, for example checking surface defects of the substrate, defect of the applied film, etc.

The system includes:

DJH NXG Drilling Rig
XY stage with heads (standard micrometer)
Microscope with stand-mounted MonoZoom optical system
Cross laser to locate the crater
High resolution color CCD camera
DJH-RLS-1 Light Source
Certified Standard for verification system
Tool Kit and Manuals
10 Pieces 0-2 Mil Drill Bits
DJH VPRO Software Package

Includes:
USB encoder interface and all required cables
Desktop computer with flat screen monitor
DJH VPro Software
Certified micrometer for software calibration
Certified metal plate for drilling verification
NXG Drilling Machine

Important:
MS Office is not supplied by DJH Designs, due to licensing restrictions introduced in 2015 by Microsoft.

**Computer specifications are subject to change without notice.

For a quote on the System, Accessories, License Plans, please contact your sales representative
