PosiTector 6000 Standard - FNTS1 Separate Sensor for coatings
- DESCRIPTION
- DATA SHEET
- ACCESSORIES
-

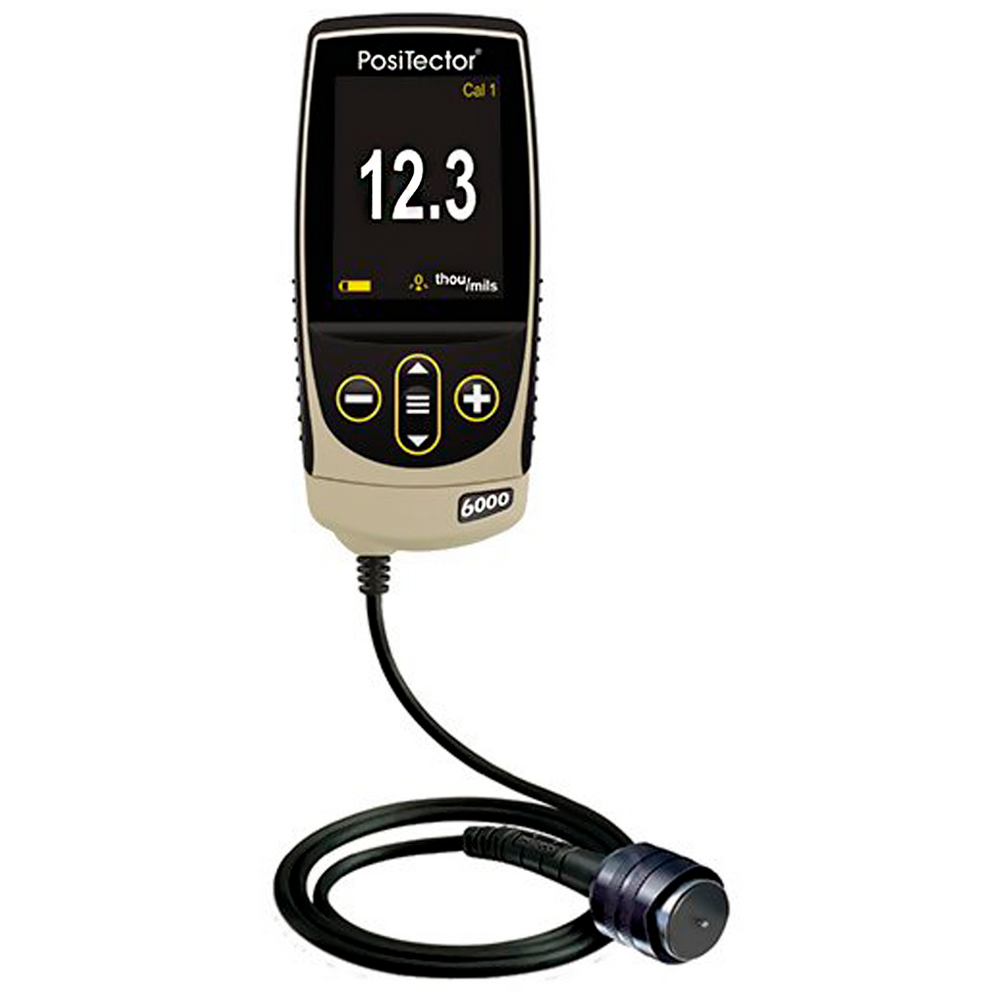

- PosiTector 6000 Coating Thickness Gauge.
- Standard Version - FNTS1 Separate Sensor for thick coatings in epoxy, rubber, among others.
- Ergonomically designed equipment for all-day measurements in the field.
- Easy-to-use touch screen.
- Compliance with International Standards ISO 2178/2360/2808, ISO 19840, ASTM B499/D1186/D1400/d7901/E376/G12, BS3900-C5, SSPC-PA2
Characteristics:
- Substrate: Ferrous / Non-Ferrous.
- Range: 0 - 250 mils and 0 - 6 mm.
- Accuracy: +/- (0.5 mils + 1%) 0 to 100 mils; +/- (0.5 mils + 3%) > 100 mils.
- Accuracy mm: +/-(0.01 mm + 1%) 0 - 2.5 mm; +/-(0.01mm + 3%) > 2.5mm.
- Shows average, min/max, standard deviation and number of readings on the screen.
- HI-RES high resolution screen.
- Storage of up to 250 readings. Includes infrared port for printing.
- Dimensions: 5.4 x 2.4 x 1.1 in (137 x 61 x 28 mm).
- Weight: 4.9 oz (140 gr) without batteries.
- Includes: Positector 6000 with external sensor, 5 verification plates, hand strap, belt clip pouch, AAA batteries, soft case and operation manual.
