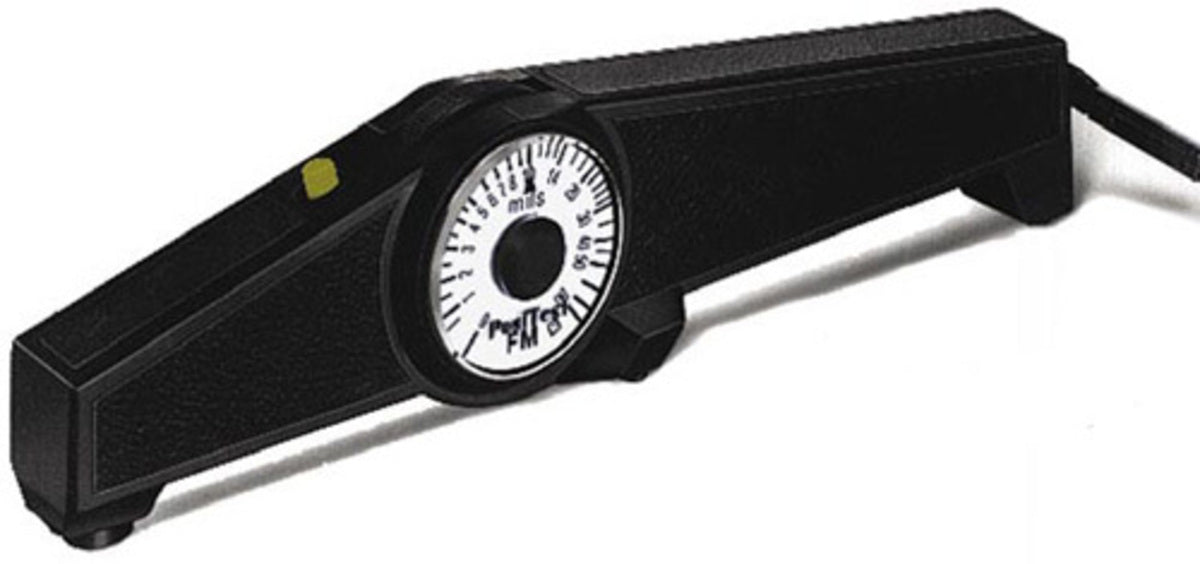

Positest FM 0-80 Mils Coating Thickness Gauges

Coating thickness gauge for non-destructive measurement of non-magnetic coatings on steel. (paint, enamel, plastic, galvanized, plating, metallized, phosphated, etc.)

Characteristics:

• Calibration certificate with traceability to PTB included with each calibrator

• Calibration standards and procedures available for each model

• High wear-resistant carbide probe for longer life and continuous precision

• Remove the center dial cover for easy calibration adjustment

• In accordance with national and international standards

• Extra robust casing, not affected by mechanical shock, water, acids or solvents

• Unique overall design, fully supported, positive positioning, no pivoting trends during measurement.

• It can be used fully supported or only with the front area of ​​the probe in contact with the surface

• Features in a Rare Earth Cobalt Permanent Magnet

• No batteries/electronics

• 2 years warranty

• Positive visual and acoustic indicators to designate when thickness reading is set

• "V" grooves in the probe housing and caliper base allow for correct positioning on cylindrical objects

• Compact, lightweight, precisely balanced, independent of gravity, can be used in any position.

• Preset GO/NO-GO button for quick measurement.

• Probe contact and dial rotation with just one finger.

• Supplied with wrist strap and instructions in a high quality leather case with belt loops for your convenience .

Technical data
