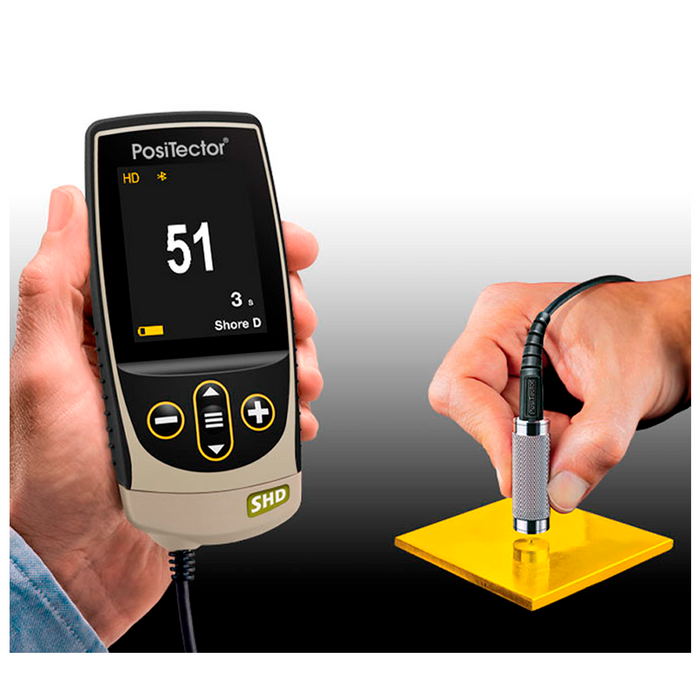

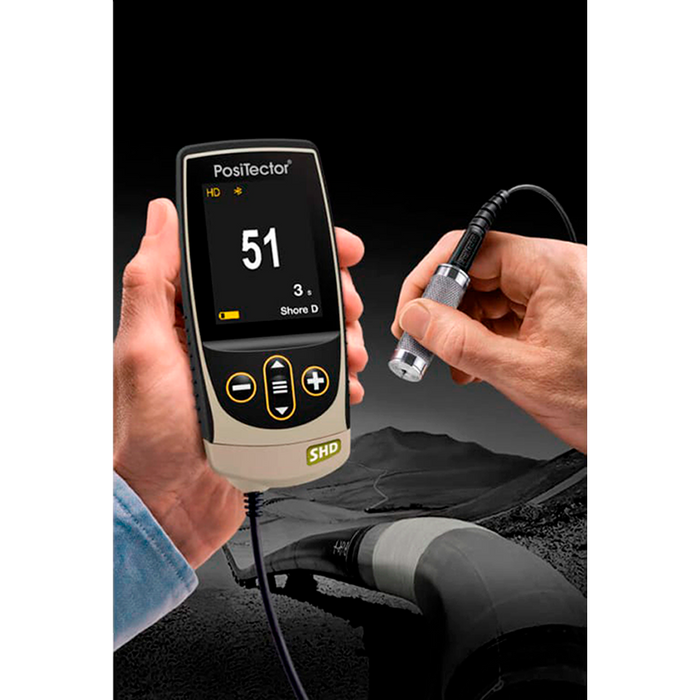

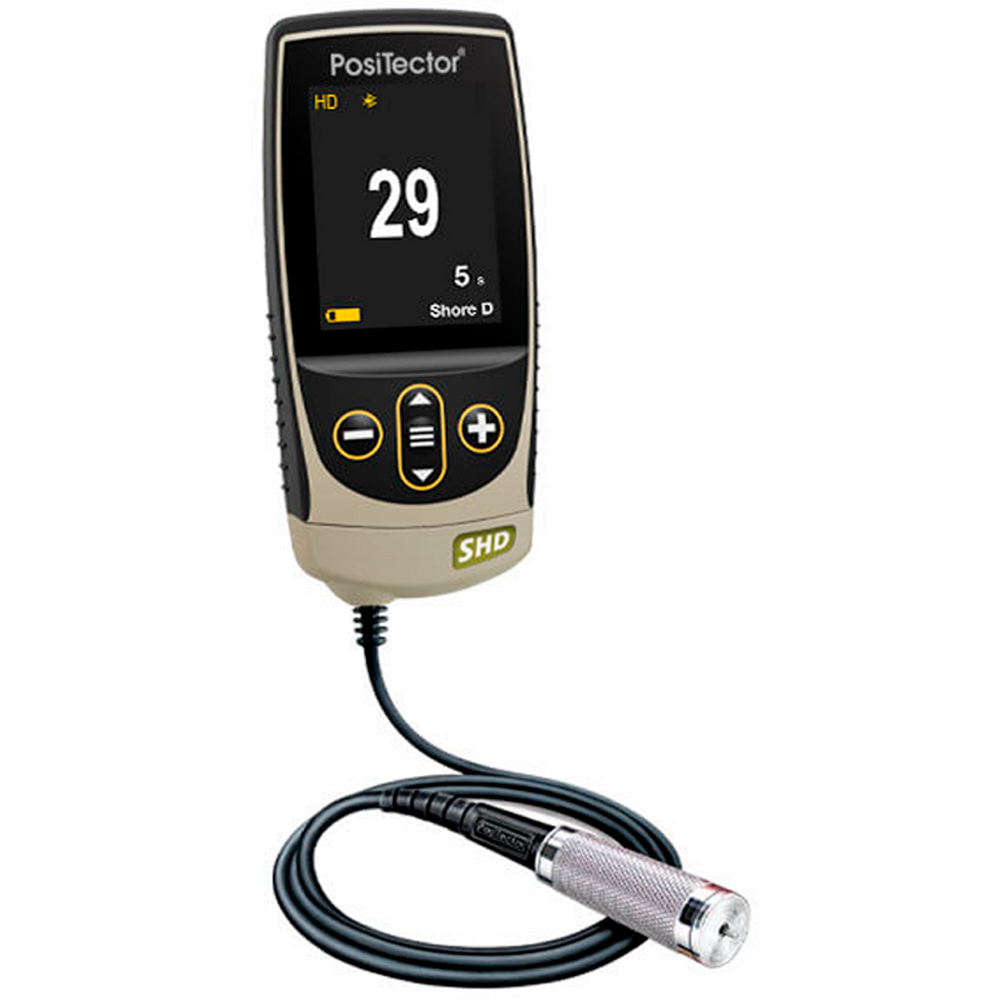

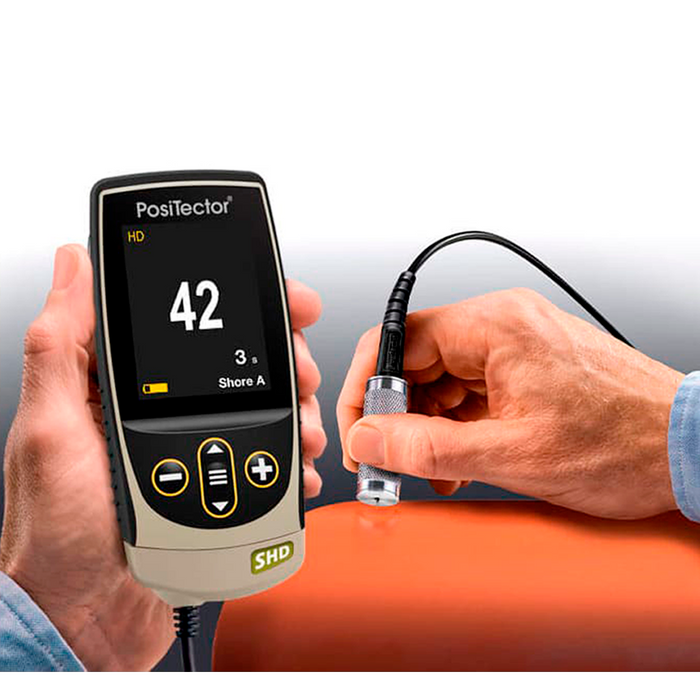

Advanced SHD PosiTector with Shore D probe

$1,240.00
SKU EXUP0060332
  • DESCRIPTION
  • DATA SHEET
  • ACCESSORIES
  • Advanced models:
    - Storage of 100,000 readings in up to 1,000 batches and subbatches.
    - Auto Sub-Batch: Automatically creates sub-batches after the required number of readings are taken.
    - Live graphs of measurement data.
    - Batch annotation/reading: Add notes and change batch names with the on-screen QWERTY keyboard.
    - WiFi technology wirelessly syncs with PosiSoft.net and downloads software updates.
    - Transfer data via USB to a PC or via Bluetooth wireless technology to a mobile device, PC or printer.
    - Store thickness, profile, environment, wall thickness and hardness measurements in individual batches.

    New body function

    - Ergonomic design with durable rubber grip for comfortable inspection all day long.
    - Larger 2.8" impact-resistant color touchscreen with redesigned keyboard for quick menu navigation.
    - Touch screen keyboard to quickly rename batches, add notes, and more (advanced only).
    - In-meter help explains menu items at the touch of a button.
    - Instant on feature turns the meter on in a fraction of a second if it was recently turned off.
    - Weather, dust and water resistant: IP65 rated housing and shock-absorbing rubber sleeve are ideal for the harshest environmental conditions, including an unexpected storm.
    - Up to 30% longer battery life.
    - Updated, streamlined user interface retains the same familiar menu structure for easy one-handed menu navigation with or without gloves.
    - Universal 1/4"-20 mounting point to secure gauge to optional belt clip and other accessories.
    - Backwards compatibility with all Positector probes manufactured since 2012.
    - Automatic rotating screen lock when the meter is rotated unintentionally.
    - Store up to 100 screenshots in memory.
    - Continuously displays/updates the average, standard deviation, minimum/maximum and number of readings during measurement.
    - Live graphs of measurement data (advanced models only).
    - Long format calibration certificate containing actual measurements included.

    Technical data
    Probes: Shore A Shore D
    Typical Applications: Soft to hard materials such as soft rubber, elastomers, neoprene, silicone, etc. Medium to extra hard materials such as hard rubber, epoxies, hard plastics, PVC, acrylic, etc.
    Range: 0 - 100
    Precision: + 1
    Resolution: 0.1
    Size: 137 x 61 x 28mm (5.4" x 2.4" x 1.1")
    Weight: 185 g (6.5 oz.) without batteries

    What includes:
    - Advanced Shore hardness durometer.
    - Test block.
    - Protective rubber cover.
    - Wrist strap.
    - 3 AAA alkaline batteries.
    - Instructions.
    - Nylon briefcase with shoulder strap.
    - Long format calibration certificate traceable to NIST.
    - Lens protective shield.
    - USB Cable.
    - PosiSoft software.
    - Two (2) years warranty.

  • Download Here.
