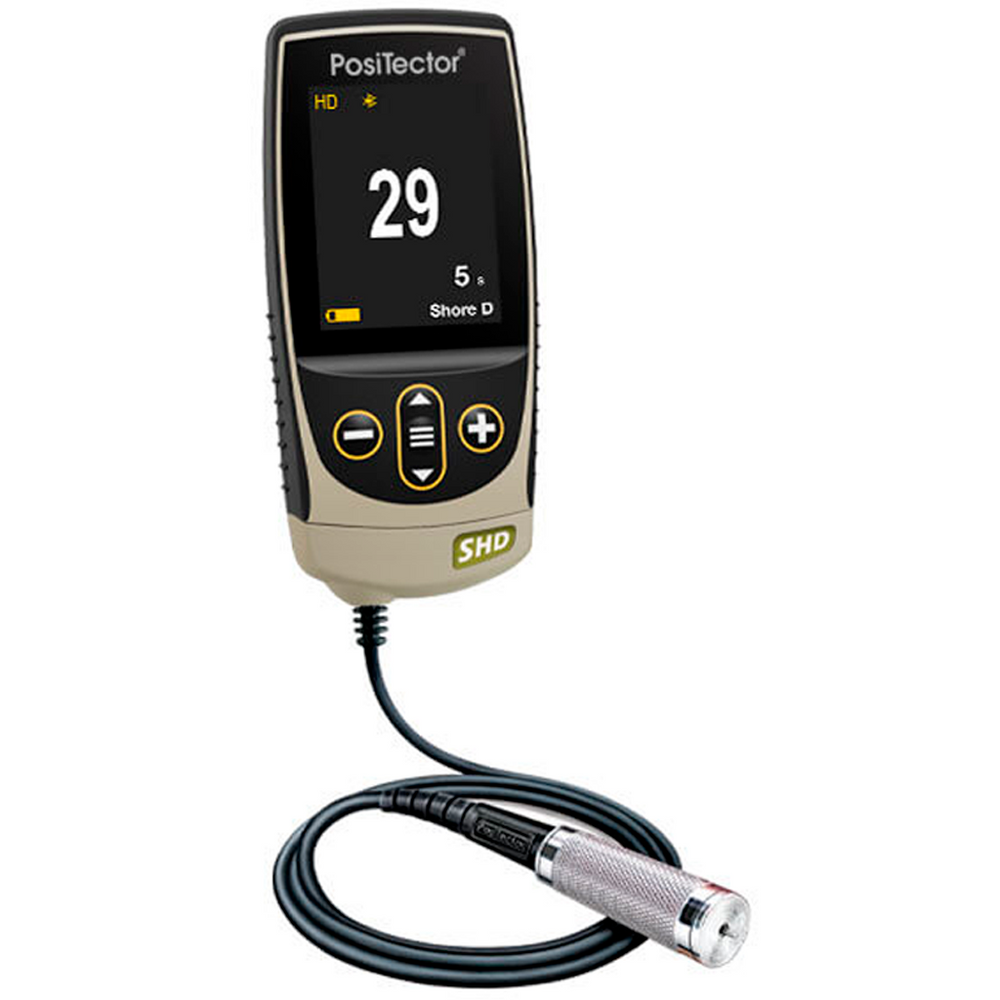

PosiTector SHD Standard with Shore D probe
- DESCRIPTION
- DATA SHEET
- ACCESSORIES
-
Standard models:
Storage of 250 readings: Stored readings can be viewed or downloaded.
New body function
- Ergonomic design with durable rubber grip for comfortable inspection all day long.
- Larger 2.8" impact-resistant color touchscreen with redesigned keyboard for quick menu navigation.
- Touch screen keyboard to quickly rename batches, add notes, and more (advanced only).
- In-meter help explains menu items at the touch of a button.
- Instant on feature turns the meter on in a fraction of a second if it was recently turned off.
- Weather, dust and water resistant: IP65 rated housing and shock-absorbing rubber sleeve are ideal for the harshest environmental conditions, including an unexpected storm.
- Up to 30% longer battery life.
- Updated, streamlined user interface retains the same familiar menu structure for easy one-handed menu navigation with or without gloves.
- Universal 1/4"-20 mounting point to secure gauge to optional belt clip and other accessories.
- Backwards compatibility with all Positector probes manufactured since 2012.
- Automatic rotating screen lock when the meter is rotated unintentionally.
- Store up to 100 screenshots in memory.
- Continuously displays/updates the average, standard deviation, minimum/maximum and number of readings during measurement.
- Live graphs of measurement data (advanced models only).
- Long format calibration certificate containing actual measurements included.Technical data Probes: Shore A Shore D Typical Applications: Soft to hard materials such as soft rubber, elastomers, neoprene, silicone, etc. Medium to extra hard materials such as hard rubber, epoxies, hard plastics, PVC, acrylic, etc. Range: 0 - 100 Precision: + 1 Resolution: 0.1 Size: 137 x 61 x 28mm (5.4" x 2.4" x 1.1") Weight: 185 g (6.5 oz.) without batteries
What includes:
- Standard Shore hardness durometer.
- Test block.
- Protective rubber cover.
- Wrist strap.
- 3 AAA alkaline batteries.
- Instructions.
- Nylon briefcase with shoulder strap.
- Long format calibration certificate traceable to NIST.
- Lens protective shield.
- USB Cable.
- PosiSoft software.
- Two (2) years warranty.
