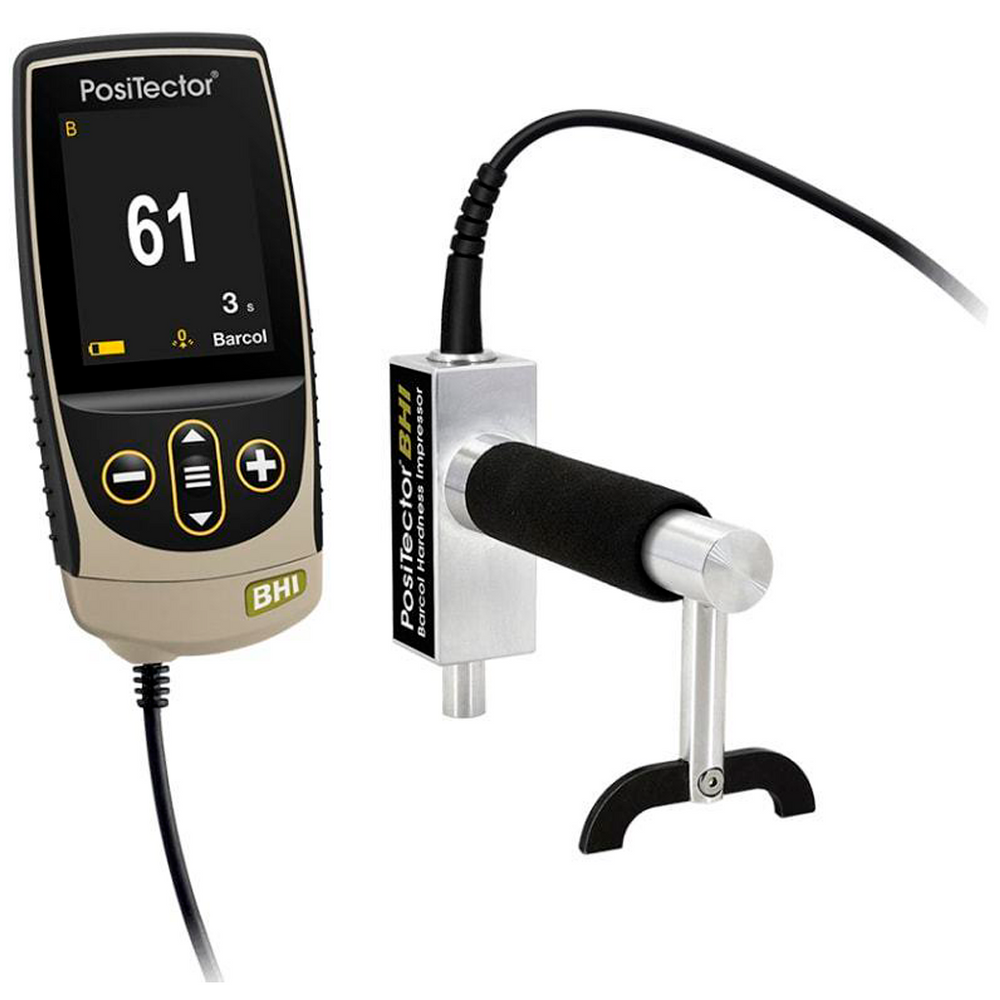

PosiTector BHI - Standard Gauge Probe and Body

$1,155.00
SKU EXUP0060302
  • DESCRIPTION
  • DATA SHEET
  • ACCESSORIES
  • Standard models:
    - Storage of 250 readings per probe: stored readings can be viewed or downloaded.

    New body function

    - Ergonomic design with durable rubber grip for comfortable inspection all day long.
    - Larger 2.8" impact-resistant color touchscreen with redesigned keyboard for quick menu navigation.
    - Touch screen keyboard to quickly rename batches, add notes, and more (advanced only).
    - In-meter help explains menu items at the touch of a button.
    - Instant on feature turns the meter on in a fraction of a second if it was recently turned off.
    - Weather, dust and water resistant: IP65 rated housing and shock-absorbing rubber sleeve are ideal for the harshest environmental conditions, including an unexpected storm.

    - Up to 30% longer battery life.
    - Updated, streamlined user interface retains the same familiar menu structure for easy one-handed menu navigation with or without gloves.
    - Universal 1/4"-20 mounting point to secure gauge to optional belt clip and other accessories.
    - Backwards compatibility with all Positector probes manufactured since 2012.
    - Automatic rotating screen lock when the meter is rotated unintentionally.
    - Store up to 100 screenshots in memory.
    - Continuously displays/updates the average, standard deviation, minimum/maximum and number of readings during measurement.
    - Live graphs of measurement data (advanced models only).
    - Long format calibration certificate containing actual measurements included.

    Technical data
    Range: 20 - 100 Boat
    Resolution: 0.1 Barcol
    Precision: ±2 Barcol
    Gauge body size: 5.4" x 2.4" x 1.1" (137 x 61 x 28mm)
    Gauge Body Weight: 4.9oz. (140 g) without batteries.

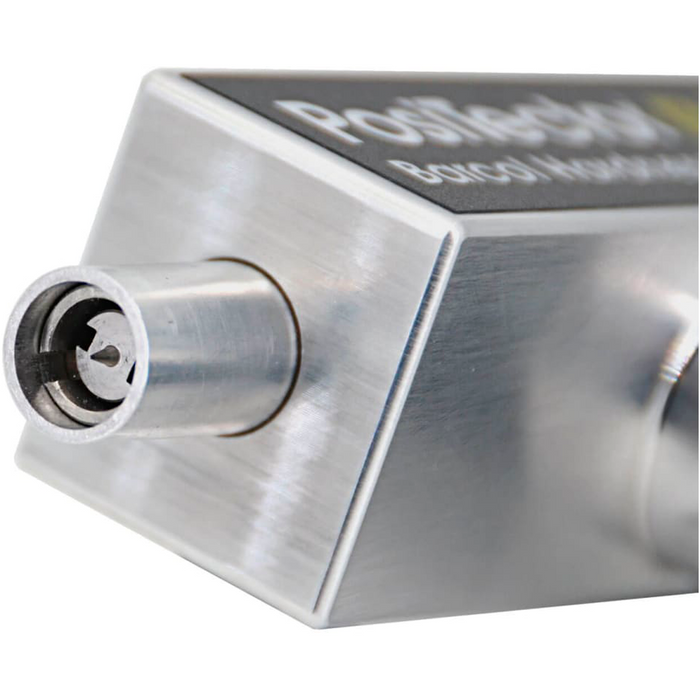

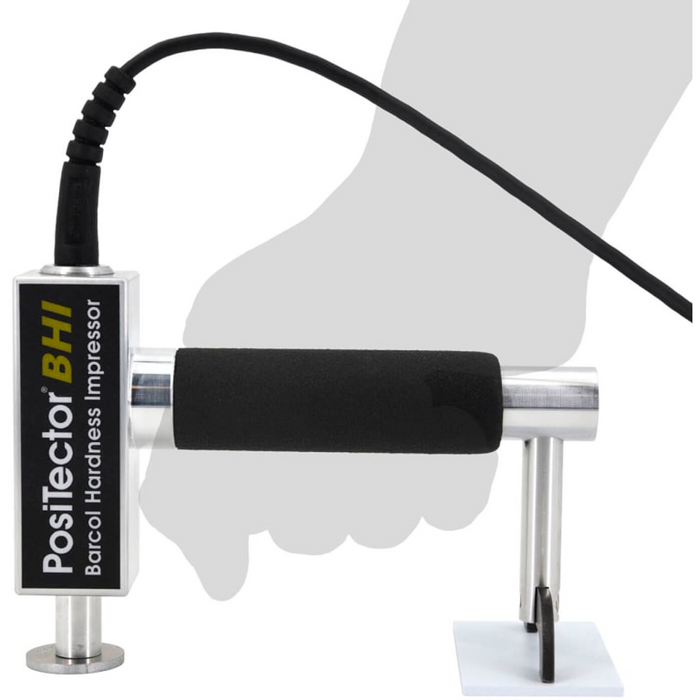

    Probe size:

    5.7" x 3.8" x 2.5" (145 x 97 x 64mm)
    Probe headspace: 5.5" (140mm)
    Probe weight: 14.1oz. (400g)

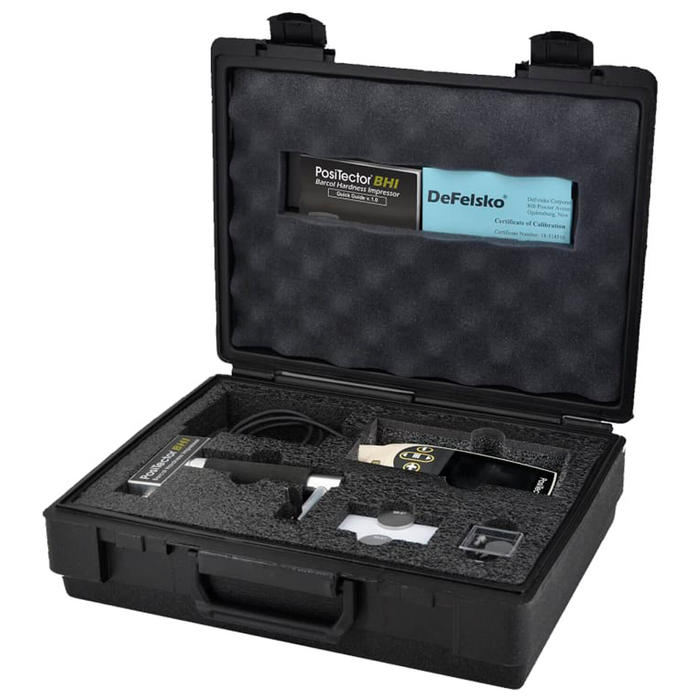

    What includes:
    - 2 test discs.
    - Glass plate.
    - Protective rubber case with belt clip.
    - Wrist strap.
    - 3 AAA batteries.
    - Instructions.
    - Hard case.
    - Protective lens protector.
    - Long format calibration certificate.
    - USB Cable.
    - PosiSoft software.
    - Two years warranty.
