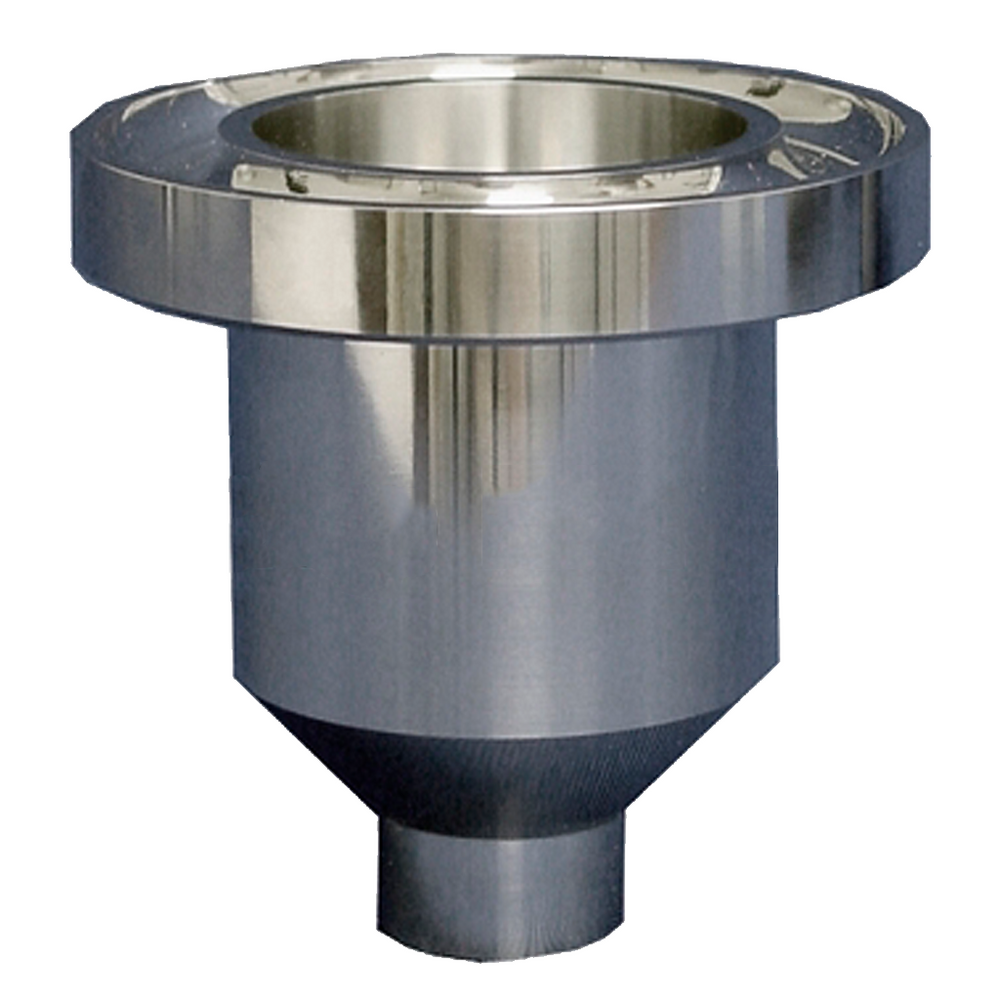

Gardco Ford No. 4 Standard Viscosity Cup

Viscosity measurement using a series of six (6) Gardco standard Ford cups

All Gardco Ford cups are machined aluminum with an alodine finish with easily removable "Snap-in, Snap-out" holes
Close production tolerance of cup and bore allows replacement or exchange of bores without loss of acceptable accuracy
Hole sizes: No. 0, 1, 2, 3, 4, 5 for standard and mini dip cup
3 hole sizes: 3, 4 and 5 for standard dip cup
Both immersion vessels are ideal for field and laboratory use
Seconds to centistokes conversion table with each cup, phone app also available.
Compliant with ASTM D1200, (except for a minimum hole diameter adjustment on the standard cup)
Cup no. #5 (standard cup and mini dip cup) compatible with the requirements of federal specification MMM-A-121 for adhesives
Standard oils, traceable to the US National Institute of Standards and Technology.
Calibration certificate traceable to the US National Institute of Standards and Technology.
The standard cup and mini dip cup meet MIL STD 45662A and meet ISO 9000 when ordered with calibration certification. Mini Dip Cup qualifies under ANSI/NCSL Z540 or ISO/IEC 17025, ISO 9001 as applicable.
