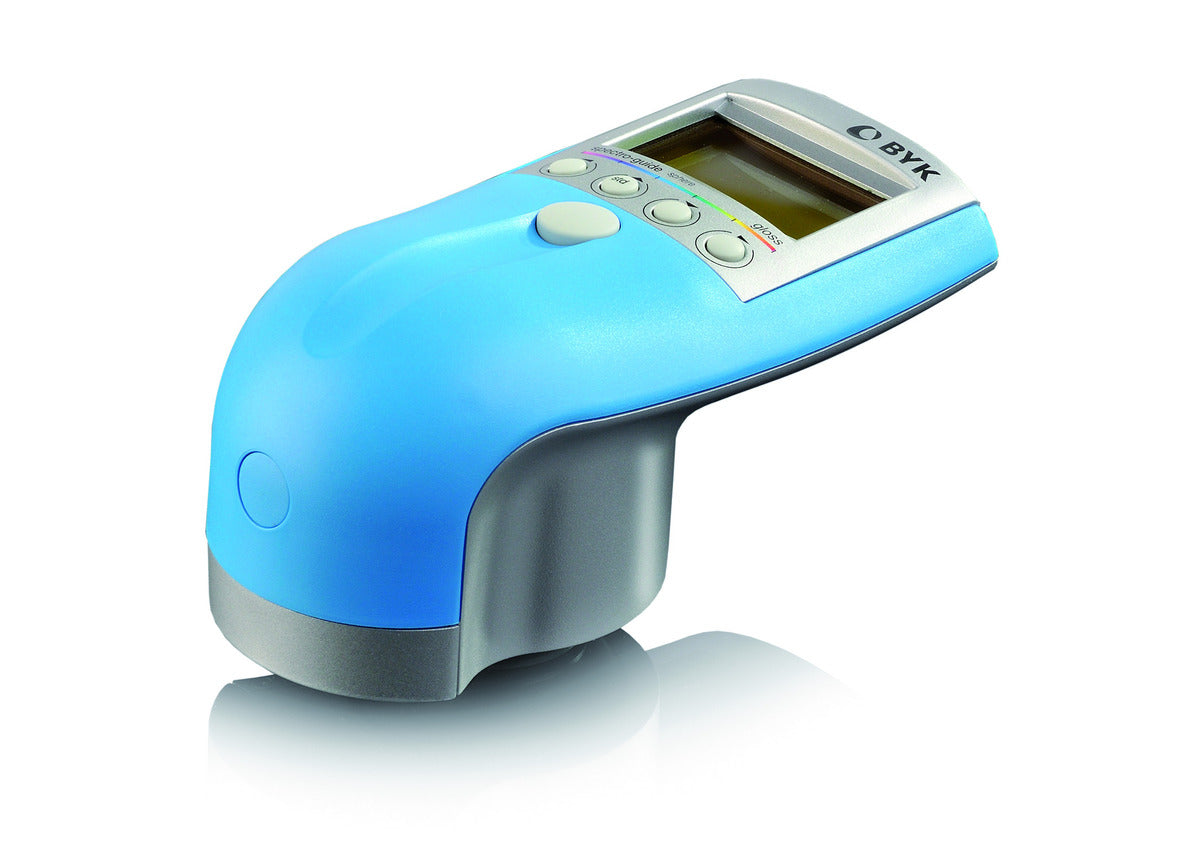

Spectro-Guide Sphere Gloss

Color geometry: d/8 spin
Brightness geometry: 60º
Color aperture: 11mm
Brightness aperture: 5 x 10mm

COLOR:

• Spectral range: 400 to 700 nm
• Spectral range: 10nm
• Repeatability: 0.01 dE*
• Reproducibility: 0.2 dE*
• Color system: CIELab/Ch; Lab(h); X AND Z; yxy
• Color differences: dE*; dE(h); dEFMC2; dE94;dECMC;dE99 dE2000
• Indices: YIE313; YID 1925; WIE313; CIE; Berger, Color Strength Opacity; Metamerism
• Illuminants: A; C; D50; D55; D65; D75; F2; F6;F8; F10; F11; UL30
• Observer: 2nd, 10th

GLOW:

• Brightness range: 0 to 180GU
• Repeatability: 0.2 GU
• Reproducibility: 1.0 GU
• Memory: 200 standards, 999 samples
• Language: English, German, French, Italian, Spanish, Japanese
• Power: 4 AA alkaline batteries; NiCd/MH batteries
• Operating temperature: 10 to 42 ºC (50 to 110 ºF)
• Humidity: < 85% non-condensing relative humidity / 35 ºC (95 ºF)
• Dimensions: 8 x 18 x 9.5 cm
• Weight: approx. 0.5kg (1.1lb)

Includes:

• Spectro-guide
• Black calibration standard White calibration standard
• High gloss standard green reference ceramic
• Sample Area Locator
• BYKWARE easy-link software data transfer cable to PC
• 4 AA batteries
• Operation manual case
• 10 years warranty on the lighting source
• 2 year warranty on defective manufacturing parts
• Training in the use of the instrument at no cost
