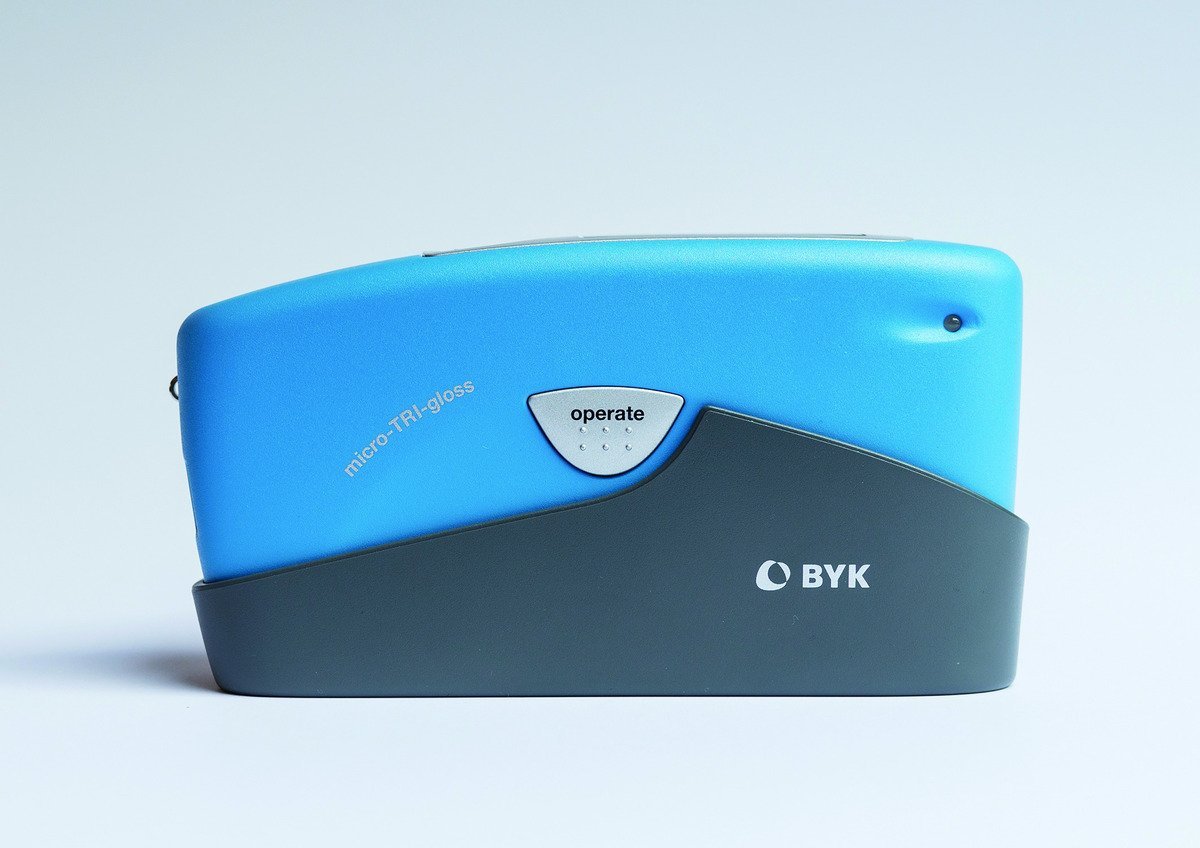

60º XS Gloss Meter
$2,700.00
SKU
- DESCRIPTION
- DATA SHEET
- ACCESSORIES
-
Intelligent gloss measurement and communication equipment for small parts
Equipment on the market combining high accuracy, easy handling and multiple functionality, essential for today's testing requirements.
Smart-chart software is an ideal tool for intelligent communication with professional documentation and efficient data analysis.

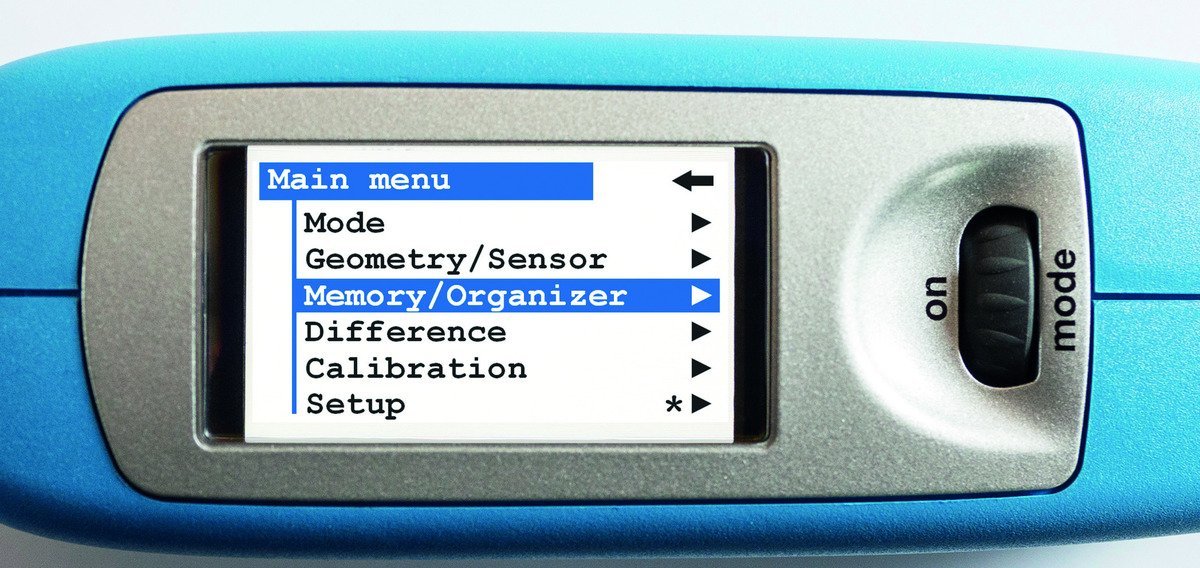

Easy-to-read color screen
Auto diagnosis
Specifications:
-Geometry 60º
-Application: Medium brightness
-Measuring Area: 2 x 4 mm (0.08 x 0.016 in)
-Range: 0 to 100 GU 100 to 2000 GU
-Repeatability: 0.2 GU; 0.2%
-Reproducibility: 0.5 GU ;0.5%
-Measurement Time: 0.5 seconds / geometry
-Memory: 999 readings with date and time
-Power: 1.5V AA alkaline battery (4000 readings) or via USB port.
-Dimensions: 155 x 73 x 48 mm (6.1 x 2.9 x 1.9 in)
-Operating temperature: 15 - 40ºC (60 - 104ºF)
Includes:

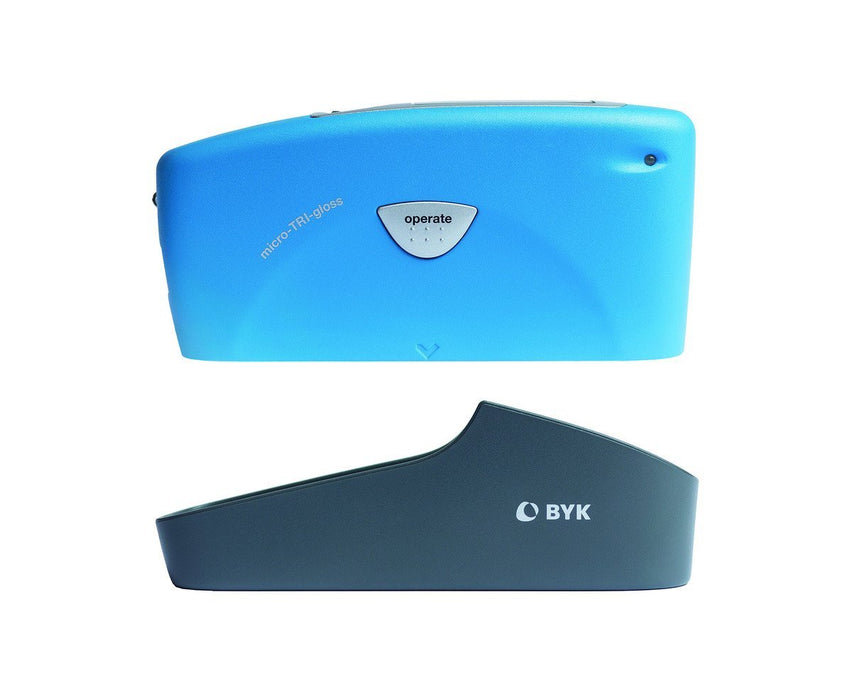

-Instrument

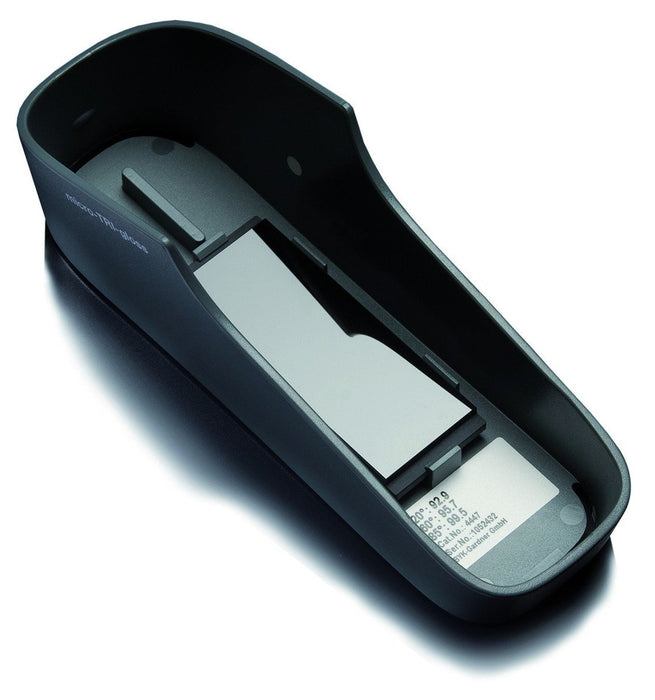

-Support with integrated calibration ceramic
-Traceability Certificate
-USB Cable, Battery
-Operation manual
-Case
-Software for downloading smart-lab Gloss or smart-process Gloss with 2 licenses.
