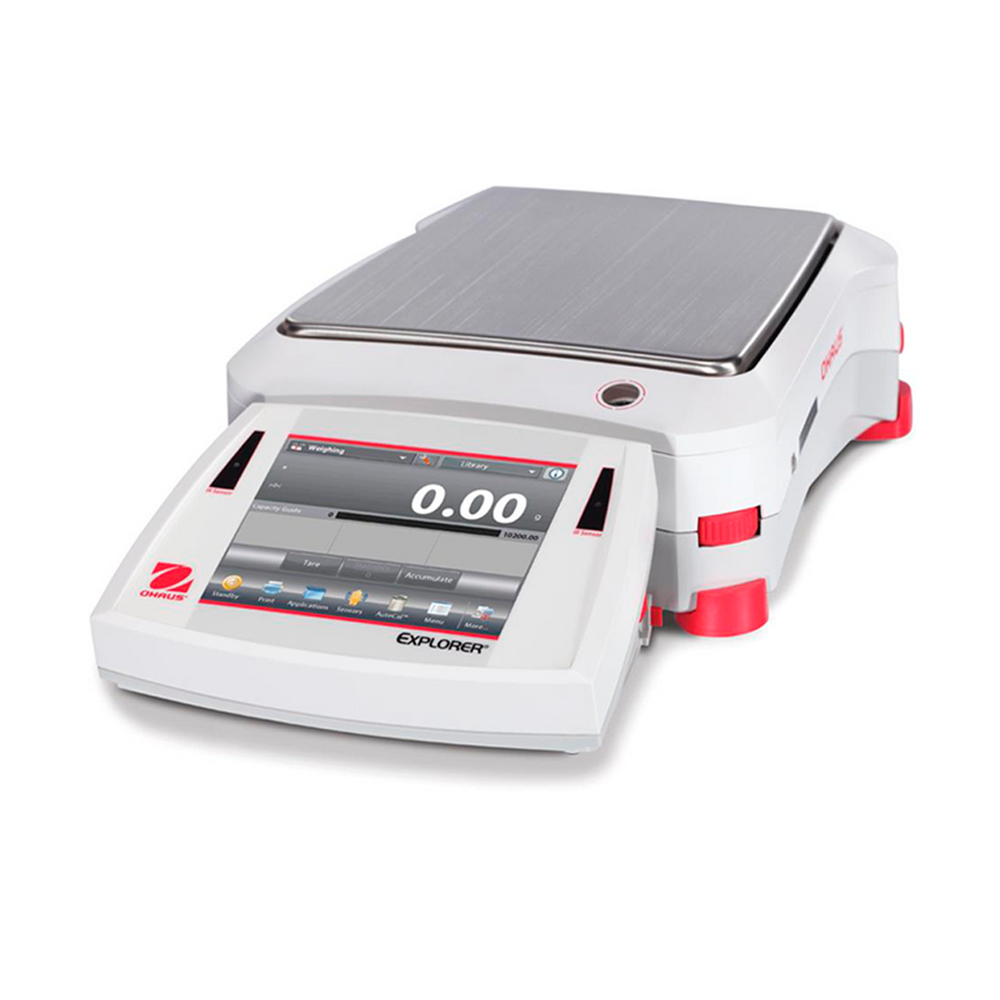

OHAUS Explorer Scale

$4,904.00
SKU
  • DESCRIPTION
  • DATA SHEET
  • ACCESSORIES
  • OHAUS Explorer introduces SmarText™ 2.0, an easy-to-use, application-based graphical software platform along with a redesigned anti-static draft shield, improved weighing performance, and a flexible modular display that detaches from the weighing base. With an ingenious balance between cutting-edge technology and functional design, the Explorer offers precise performance that will improve your efficiency in the laboratory.

    Characteristics
    Smart Performance: All Explorers have newly optimized linearity and repeatability specifications and improved vibration filtering for better balance stability. All models also come standard with Auto-Cal™ automatic internal calibration. These improvements combined improve accuracy, efficiency and performance.

    Intuitive Operation: A large color touch screen, icon-based application software featuring 14 unique application modes, and an adjustable angle display make Explorer the most advanced and easy-to-use scale in its class today.

    Ingenious Design: The base and screen separate for maximum flexibility in any work area. The design also isolates the weighing chamber to improve stability and speed results. The draft shield models feature a much larger chamber with a new quick release design, enhanced with a unique anti-static system.

    Convenient Features: Explorer has four user-programmable contactless sensors to minimize cross-contamination and button wear. All Explorers meet or exceed Class I and II accuracy requirements in accordance with National Institute of Standards and Technology (NIST) Manual 44.

    Technical data
      BL-EX124
    Capacity (g): 120
    Readability (g): 0.0001
    Repeatability (St. Dev.) (G): ±0.0001
    Linearity (g) (±): ±0.0002
    Stabilization time: ≤2
    Weighing applications: Weighing Applications Weighing, percentage weighing, piece counting, checkweighing, dynamic/animal weighing, filling, totaling, formulation, differential weighing, density determination, peak hold, ingredient costing, pipette setting, SQC
    Weighing units: Gram, Milligram, Kilogram, Carat, Ounce, Troy Ounce, Pound, Pennyweight, Grain, Newton, Momme, Mesghal, Hong Kong Tael, Singapore Tael, Taiwan Tael, Tical, Tola, Baht, 3 Customized Units
    Calibration: AutoCal™ on Δ1.5°C temperature change, 11 hours and external calibration
    Tare range: At capacity by subtraction
    Power requirements: AC Adapter Input: 100-240VAC 0.6A 50-60Hz
    Display type: VGA full color graphic display, 4-wire resistive touch screen
    Screen size: 5.7 inches / 145 mm (diagonal)
    Screen Case Dimensions (WxHxD): 7.7 x 3.5 x 6.0 inches / 195 x 90 x 154mm
    Base Case Dimensions (WxHxD): 9.1 x 13.8 x 15.5 inches / 230 x 350 x 393mm
    Communication: RS232, USB
    Temp. Operating Cover: 50°F (10°C) to 86°F (30°C)
    Operating Humidity Range: 15% to 80% at 87.8°F (31°C) decreasing linearly to 50% at 40°C, non-condensing
    Storage conditions: -14°F (-10°C) to 140°F (60°C) at 10% to 90% relative humidity, non-condensing
    Saucepan size: 3.5 inches / 90mm
    Net weight: 15.2 lbs / 6.9 kg
    Shipping Weight: 21.1 lbs / 9.6 kg
    Shipping Dimensions: 21 x 15 x 21 inches / 55 x 38.5 x 55.1 cm
