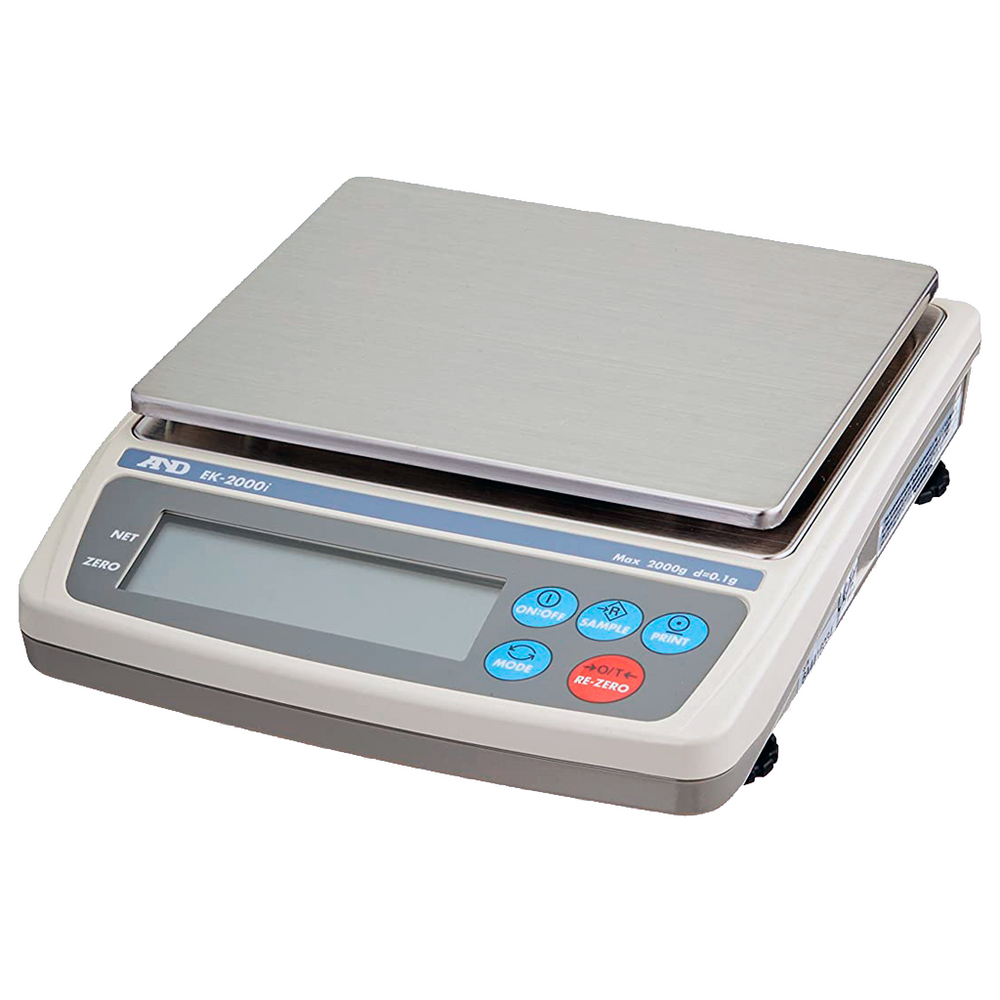

Compact scale EK-2000i, 2000g
- DESCRIPTION
- DATA SHEET
- ACCESSORIES
-
A&D EK-2000i offers a weighing capacity of 2000 grams and 0.01 gram increments that deliver outstanding performance, professional features with the quality you demand. Rigid construction with overload shutdown protection prevents damage to the weighing sensor for increased durability and is backed by a 5-year limited manufacturer's warranty. The convenient five-button keyboard with clearly defined keys simplifies weighing operations.
Characteristics:
* Large LCD screen (16mm H) with backlight: easy to read even at a wide viewing angle or in a dark environment.
* Wide selection of 12 different models 30g - 12kg.
*Zero control, mode selection and data output with standard RS-232C.
* Triple range weighing for EW-i series.
* 9 built-in weighing units plus count and percentage with user priority start.
* Counting function with automatic counting accuracy improvement.
*Standard comparator function: HI/OK/LO annunciator.
* Auto power off.
* Full digital calibration with optional user-definable mass adjustment.
* GLP compliant with ID and serial number outputs.
*Compact portable size, light weight and sturdy body.
* Sealed key panel protection against dust and spills.
* Low profile and small size for minimal space required.
* Overload protection.
* Stainless steel weighing plate.
* Leveling feet and leveling bubble for accurate weighing.
* Security ring to prevent theft.Technical data EK-i series EK-300i EK-2000i EK-3000i EK-6000i Gram (g): 300 x 0.01 2000 x 0.1 3000 x 0.1 6000 x 1 Decimal ounce (av) (oz): 10.5820 x 0.0005 70.550 x 0.005 105.820 x 0.005 211.65 x 0.05 Decimal pound (av) (lb): - 4.4090 x 0.0005 6.6140 x 0.0005 13.2330 x 0.005 Troy ounce (ozt): 9.6450 x 0.0005 64.300 x 0.005 96.450 x 0.005 192.90 x 0.05 Pennyweight (dwt): 192.90 x 0.01 1286.0 x 0.1 1929.0 x 0.1 3858 x 1 Carat (ct): 1500.00 x 0.05 10000.0 x 0.5 15000.0 x 0.5 - Momme (mom): 80,000 x 0.005 533.35 x 0.05 800.00 x 0.05 1600.0 x 0.05 Grain Unit (GN): 4629.8 x 0.2 30864 x 2 46298 x 2 - Tael (Hong Kong general) (tl): 7.9365 x 0.0005 52.910 x 0.005 79.365 x 0.005 158.75 x 0.05 Counting mode: Max. count: 30,000 pieces 20,000 pieces 30,000 pieces 6,000 pieces Min. weight unit: 0.01g 0.1g 1g No. of samples: 5, 10, 25, 50 or 100 pieces Percentage mode: Min. Div.: 0.1% 100% minimum weight: 1g 10g 100 grams Linearity: ±0.02g ±0.1g ±0.2g ±1g Ability: 300g 2000g 3000g 6000g Resolution: 0.01g 0.1g 1g Repeatability / Std. Dev.: 0.01g 0.1g 1g Sensitivity drift: ±20 ppm/°C (10°C - 30°C/50°F - 86°F) Display type: 7-segment LCD with backlight (character height 16 mm) Update screen: 10 times/second Pan Size (W) x (D): Ø110mm / 4.3 inches 133 x 170mm/5.2 x 6.7inch Physical dimensions (mm): 190 (width) x 218 (depth) x 55 (height) 190 (width) x 218 (depth) x 53 (height) Physical dimensions (inches): 7.5 (width) x 8.6 (depth) x2.2 (height) 7.5 (width) x 8.6 (depth) x 2.1 (height) Admissible ambient temperature: -10°C - 40°C / 14°F - 104°F, less than 85% relative humidity Approximate weight.): 1.1kg 1.5kg Calibration mass (default setting): 300g 2000g 3000g 6000g Can: AC adapter or Ni-MH battery (optional) Standard accessories: Manual, AC adapter -
