Cross Hatch Paint Adhesion Test Kit

The Crosshatch Paint Adhesion Test (PAT) kit is used to evaluate adhesion by cutting the paint or coating into small squares, which reduces lateral adhesion.

The Paint and Coatings Adhesion Test Kit contains all the necessary tools and materials, except the multi-tooth cutting blade, to perform adhesion tests on paints applied to a flat, uniform surface in accordance with ASTM D3359 test method , method B and DIN Standard No. 53151.

The multi-tooth cutting blade is supplied separately to allow choice between the various designs available.

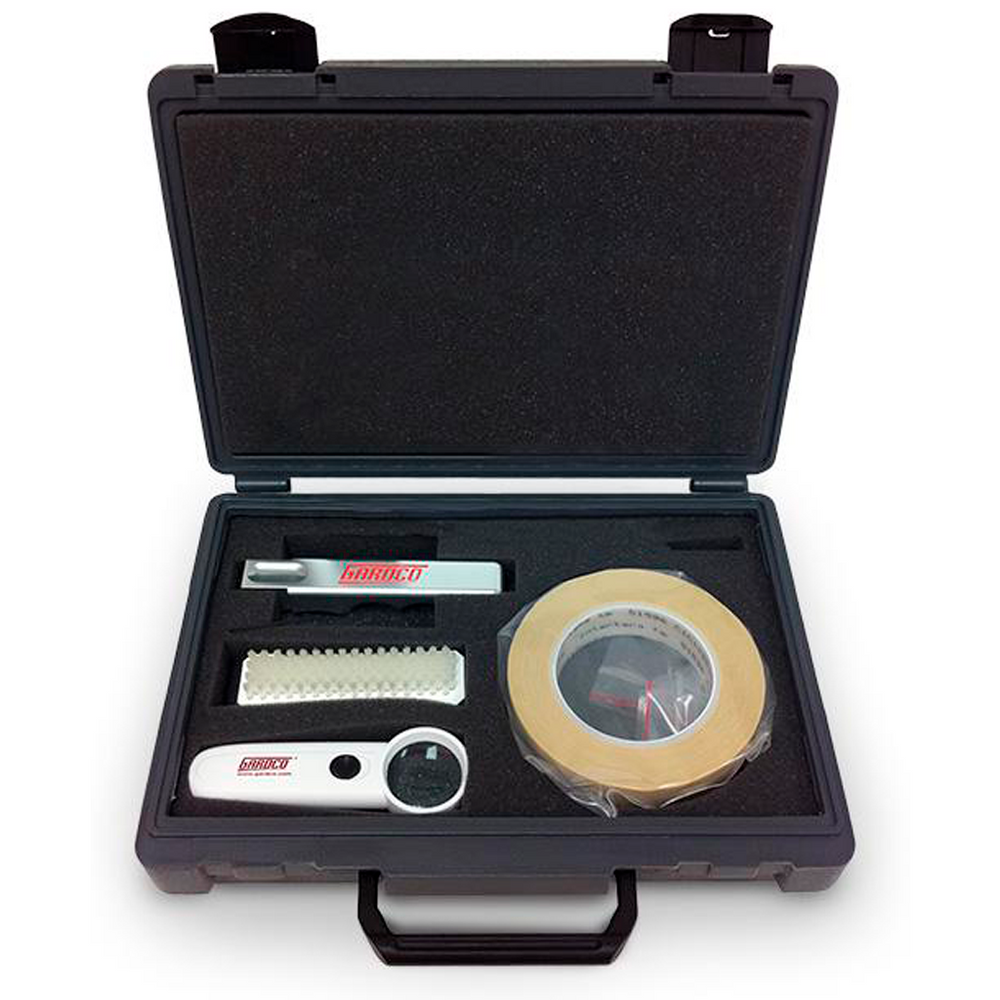

Kit includes blade holder/handle with guide, hex wrench for changing blades, chipping brush, 5x LED handheld magnifier with batteries (magnifier has 2 LED lights and 1.5" glass lens), adhesive tape - PA-280630* , instruction guide, and a sturdy plastic case with handle. All components are nested in die-cut foam inside the case *Permacel #99 test tape is no longer available.
