Byko-cup M
$3,925.00
SKU EXUP0011802
- DESCRIPTION
- DATA SHEET
- ACCESSORIES
-
Gradual deformation by indentation - manual operation.

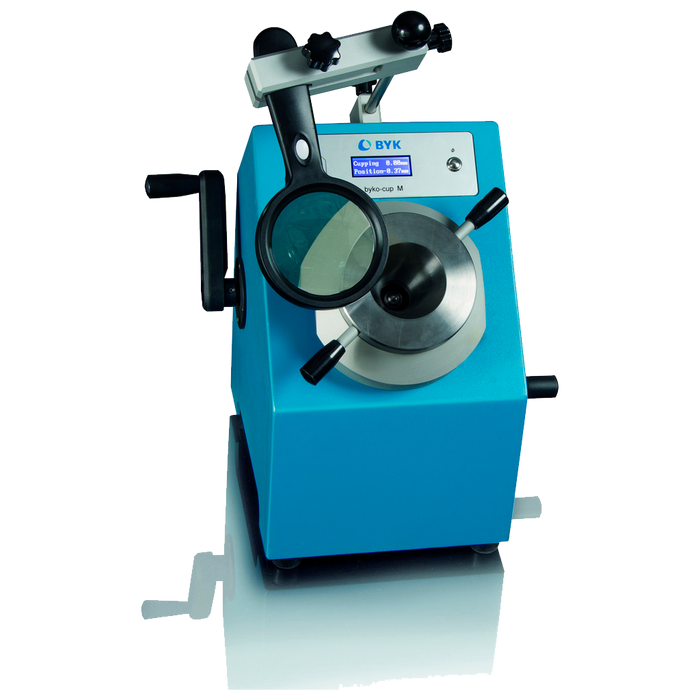

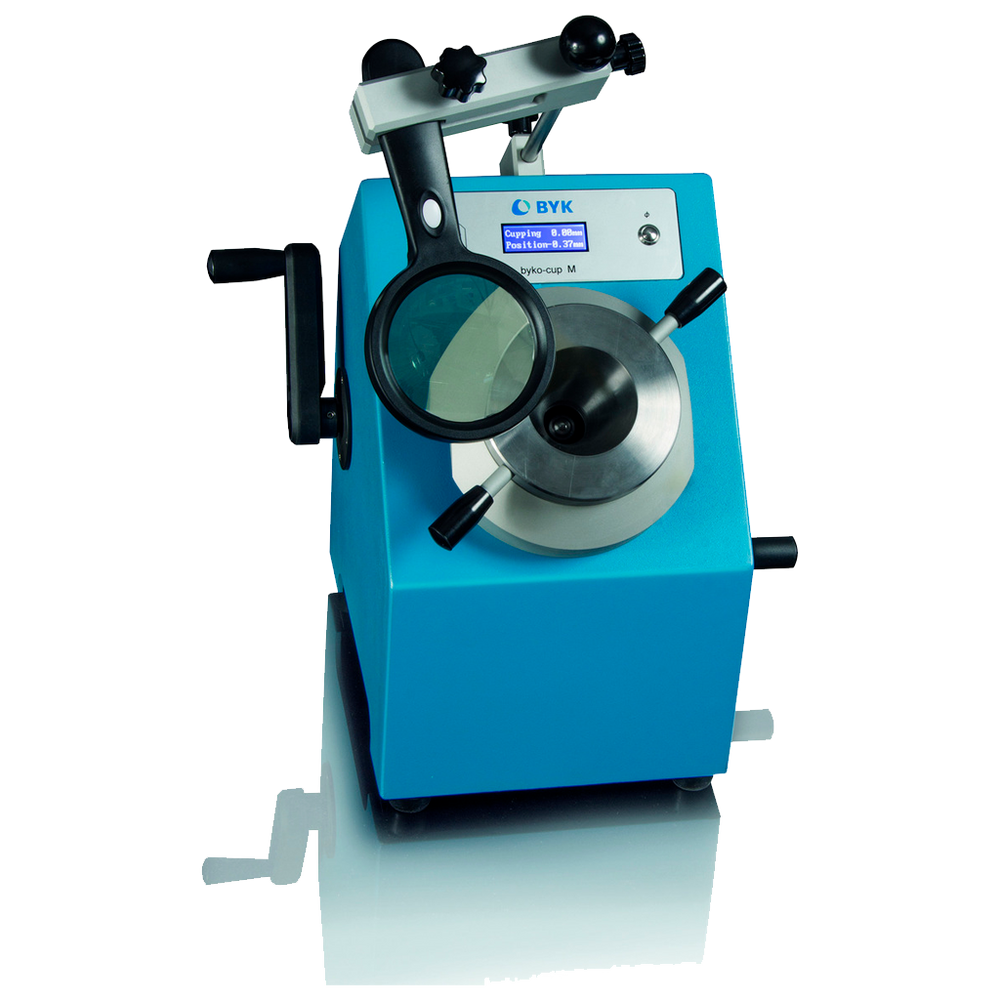

The byko-cup M suction cup tester is designed to test the elongation and deformability of lacquers and protective coatings applied to metal substrates. The punch is applied under pressure to the uncoated side of the test panel.
The panel is held in place by a retaining ring. Two test procedures can be performed: "Default depth" (pass/fail) or "Minimum depth required to cause a failure."
Characteristics:- Ergonomic design saves space
- Precision gears provide reproducible results
- Battery operated with automatic shut-off function
- Binocular for better visual inspection
- Clamp holds samples for adequate fastening of the panel.
Technical data Ball punch: Ø 0.8 in. (Ø 20mm) Complete trip: 0.0 - 0.81 in. (0.00 - 20.50mm) Precision: 0.002 in. (±0.05mm), full range Calibrated range: 0.02 - 0.81 in. (-0.5 to 20.5mm) Gear: 1 revolution of the handle moves the punch 0.2 mm under load Monitor: 4 digit LCD Dimensions: 19.7x15.9x11.0 inches (500x405x280mm) Weight: 60.0 lbs (27.2 kg) Can: 5VDC - 1A Plug Adapter 100-240 VAC Input, 3 AAA Alkaline Batteries Operating temperature: 59 - 95°F (+15 - +35°C) What includes:

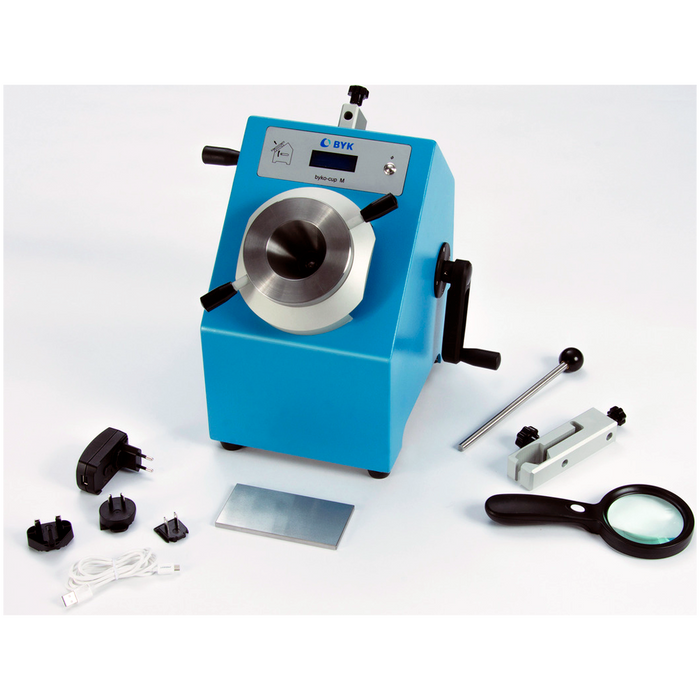

* Byko-cup M machine.
* Plate Zero.
* Plunger.
* Glass magnifying glass.
* 3 AAA batteries.
* Manual.
